E07-400M10S

Identity

Manufacturer: EBYTE(亿佰特)
Model / MPN: E07-400M10S
LCSC: C2965513
Category: sub-ghz-module

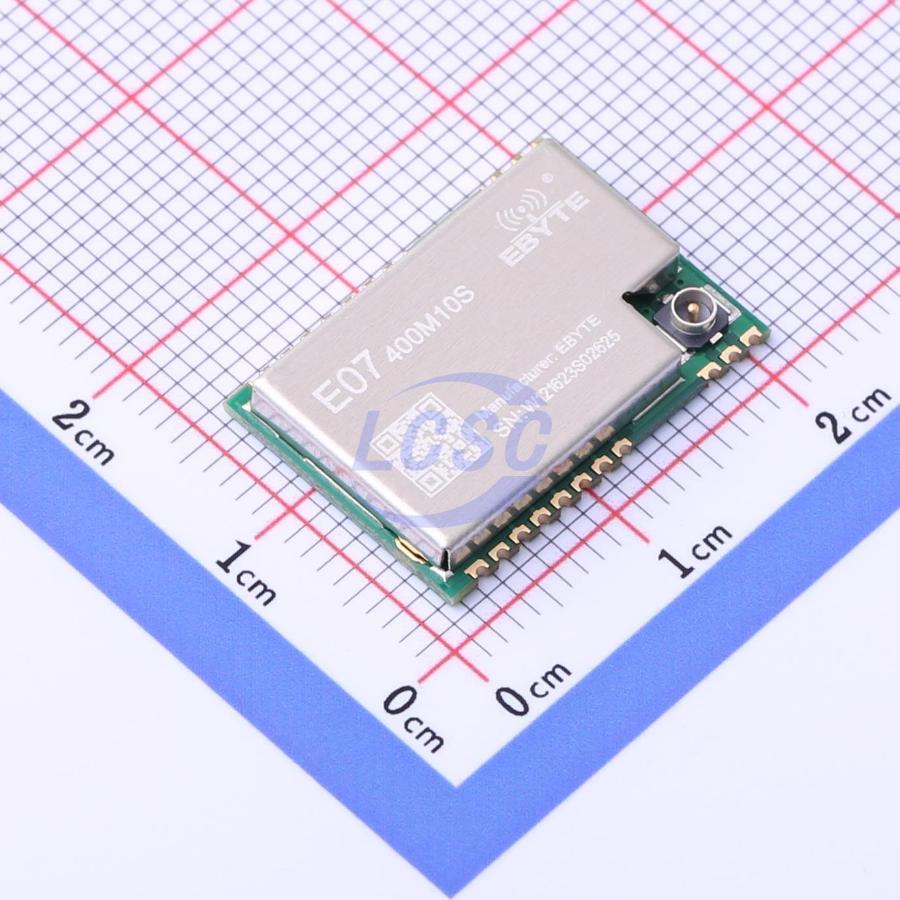

Description: CC1101 433MHz industrial RF data transceiver module, 2.5V~3.6V, SPI, Output Power(Max):10dBm, RX 18mA, TX 35mA, distance 1.5km
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

spi: interface

Package And Footprint

Package / footprint name: SMD,20x14mm
Pin count: Unknown
EasyEDA symbol UUID: 8d4fc4a088e24e7ea34129df283495db
EasyEDA footprint UUID: 9a29b1a6bc32438d89c6dc60118ce6a5
EasyEDA device UUID: 787c9ff8810a469c83d2b169407ed2ec
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: EasyEDA property: 18mA.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 2.5V~3.6V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connectivity, positioning, and RF interface seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/E07-400M10S/3357274.html
Product URL: https://item.szlcsc.com/datasheet/E07-400M10S/3357274.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category sub-ghz-module, interfaces spi, package SMD,20x14mm, and EasyEDA footprint UUID 9a29b1a6bc32438d89c6dc60118ce6a5.
