S2B-PH-SM4-TB(LF)(SN)

Identity

Manufacturer: JST
Model / MPN: S2B-PH-SM4-TB(LF)(SN)
LCSC: C295747
Category: jst-ph-connector

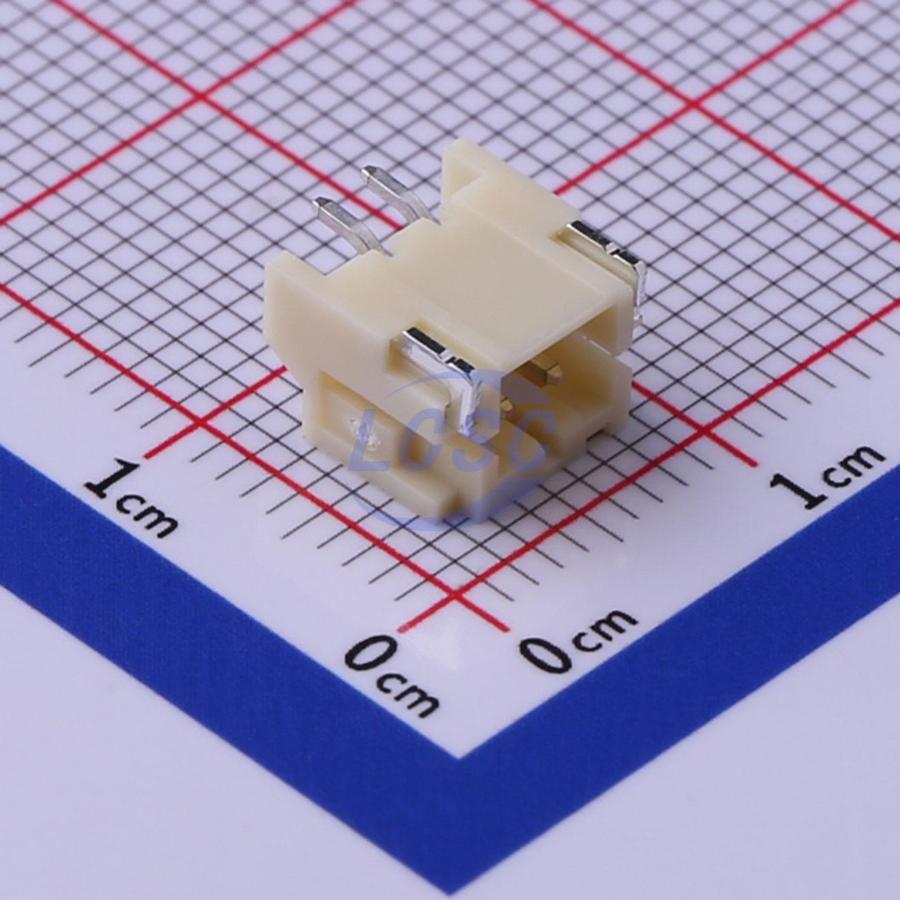

Description: PH series 1x2P horizontal connector, 2mm pitch, 2A max, copper alloy contacts, tin plating.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: SMD,P=2mm,卧贴
Pin count: Unknown
EasyEDA symbol UUID: 949051c2dc9b46d28b8116ac48c62b1a
EasyEDA footprint UUID: 09ed7394b5f04eccb36be7738c45b2ef
EasyEDA device UUID: e36262a38c7e4ab8a1efe0df793ebdea
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connector, HMI, and mechanical interface seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://atta.szlcsc.com/upload/public/pdf/source/20210203/C295747_344B2E64535E381E727D98C302AB61C7.pdf
Product URL: https://atta.szlcsc.com/upload/public/pdf/source/20210203/C295747_344B2E64535E381E727D98C302AB61C7.pdf
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category jst-ph-connector, interfaces none captured, package SMD,P=2mm,卧贴, and EasyEDA footprint UUID 09ed7394b5f04eccb36be7738c45b2ef.

Search Keywords

seed:common-connectors-hmi-mechanical, source:easyeda-bridge, iot, common-pcb, jst-ph, 2mm, 2-pin, smd, right-angle, battery, wire-to-board, jst-ph-connector, smd-p-2mm, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-common-connector-hmi-and-mechanical-interface-seed
