015401.5DRT

Identity

• Manufacturer: Littelfuse(美国力特)
• Model / MPN: 015401.5DRT
• LCSC: C2936103
• Category: smd-fuse

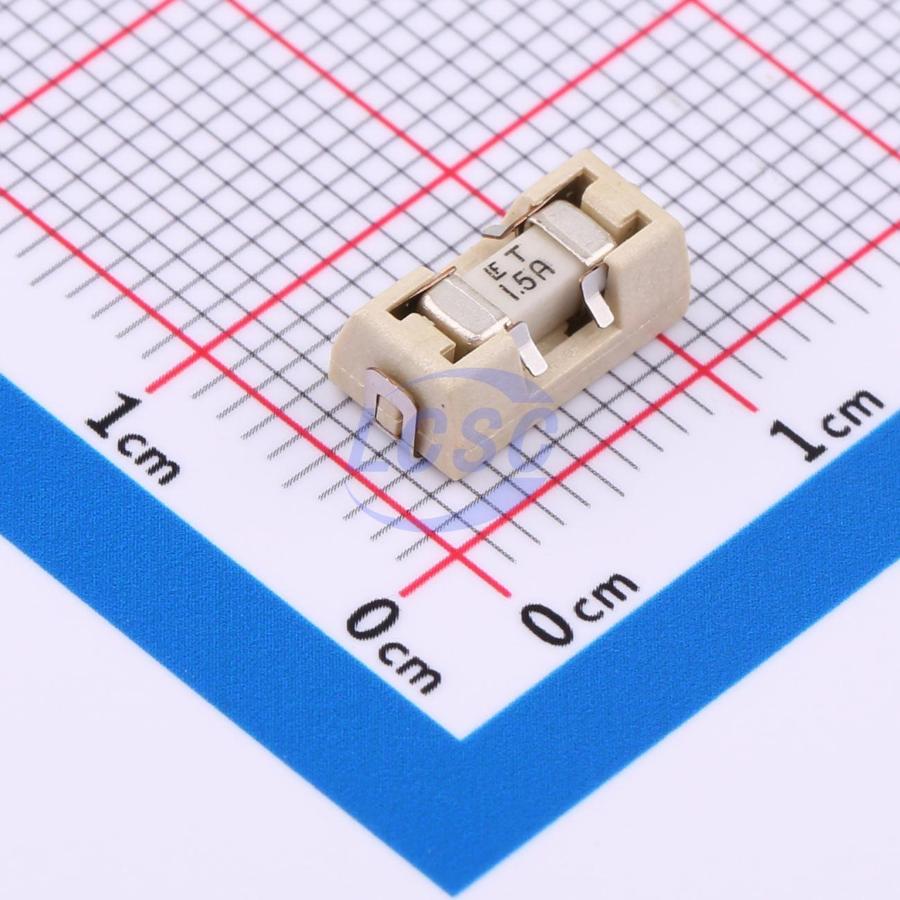

• Description: 1.5A 125V Surface Mount Fuse (with Holder) Type:Surface Mount Fuse (with Holder) Current Rating:1.5A Voltage Rating (DC):125V Operating Temperature:-55℃+125℃ Operating Temperature:-55℃+125℃ Interrupt Rating:50A Length:9.73mm Width:5.03mm Height:3.81mm
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: SMD,10.62×3.81mm
• Pin count: Unknown
• EasyEDA symbol UUID: 4694590d1bc94b6d8438160a1e79c905
• EasyEDA footprint UUID: 1ceec7f2100d492bbdf25083c1d4f2b0
• EasyEDA device UUID: d9a3af8e833a4c2dbff7db2549ca8cbf
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common debug headers, FPC/mezzanine connectors, field wiring terminals, and fuse seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/015401.5DRT/3287966.html
• Product URL: https://item.szlcsc.com/datasheet/015401.5DRT/3287966.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: non-resettable input protection, branch-rail protection, USB/load protection, and compact replace-by-rework fuse points
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category smd-fuse, interfaces none captured, package SMD,10.62×3.81mm, and EasyEDA footprint UUID 1ceec7f2100d492bbdf25083c1d4f2b0.
