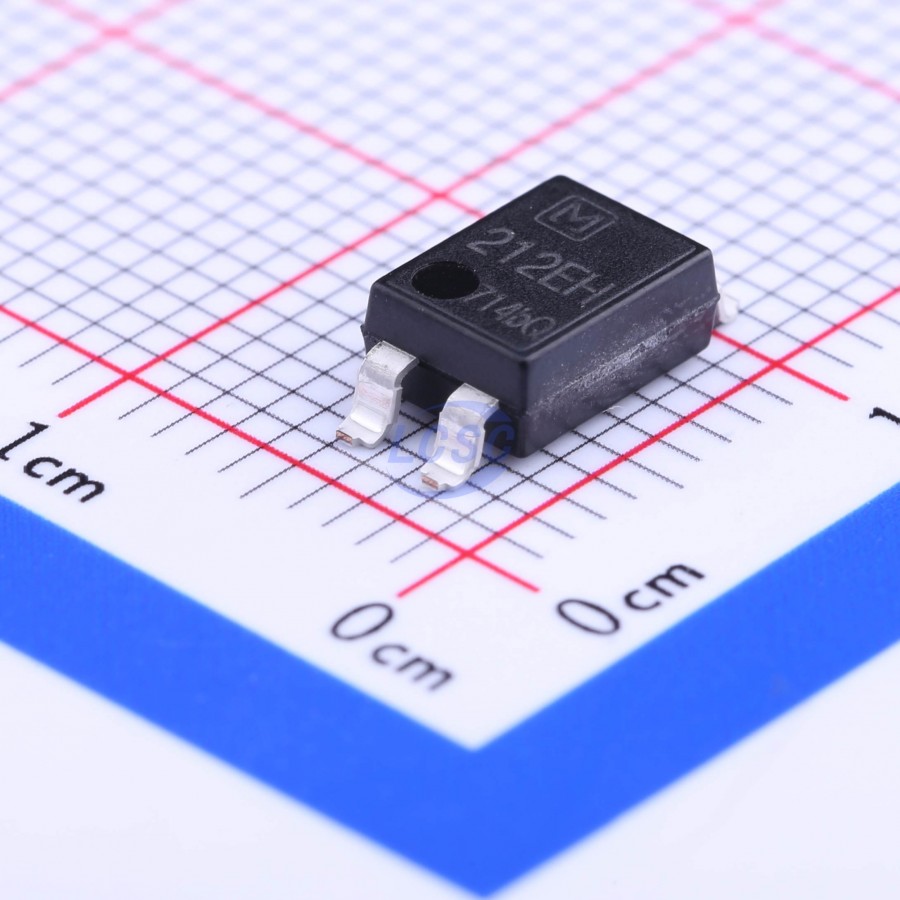

AQY212EHAX

Identity

• Manufacturer: PANASONIC(松下)
• Model / MPN: AQY212EHAX
• LCSC: C29276
• Category: solid-state-relay
• Description: 1 Form A SPST-NO solid-state relay, AC/DC load, 60V load, 550mA load, 1.25V Vf, 850mΩ RDS(on), 5kV isolation, 1ms on, 50us off.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: SOP-4-2.54mm
• Pin count: 4
• EasyEDA symbol UUID: 7733891b60924e5fb0a5439afbcb05fe
• EasyEDA footprint UUID: ef18f77750a64856b60d7d52be158ca8
• EasyEDA device UUID: bb9a3b62e37d4ac891d34e57ba160c50
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/AQY212EHAX/30028.html
• Product URL: https://item.szlcsc.com/datasheet/AQY212EHAX/30028.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category solid-state-relay, interfaces gpio, package SOP-4-2.54mm, and EasyEDA footprint UUID ef18f77750a64856b60d7d52be158ca8.

Search Keywords

seed:common-drivers-isolation-actuation, source:easyeda-bridge, iot, common-pcb, aqy212, photomos, spst-no, 60v, 550ma, solid-state-relay, sop-4-2.54mm, jlc-extended, gpio, jlc_extended, jlc-note:easyeda-jlc-verified-common-drivers-isolation-and-actuation-seed
