TYPEC-304A-ACP16W

Identity

Manufacturer: XUNPU(讯普)
Model / MPN: TYPEC-304A-ACP16W
LCSC: C2909607
Category: usb-c-connector

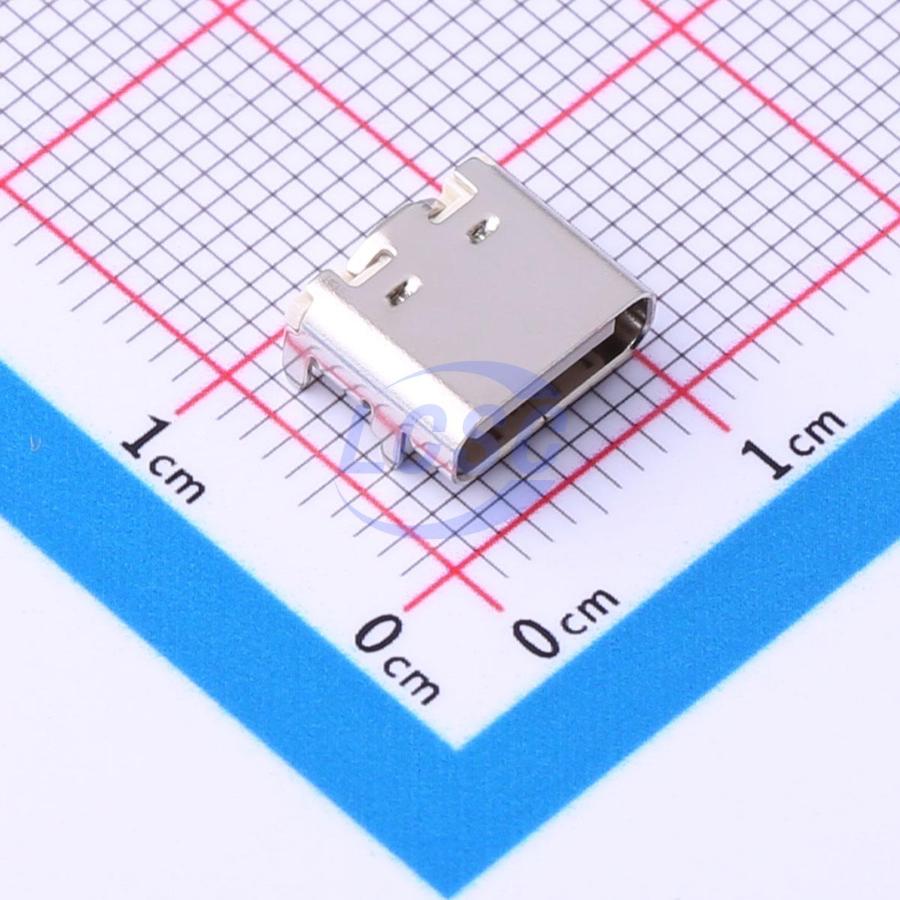

Description: TYPEC-304A-ACP16W Type-C female right-angle SMT connector; USB 3.1; 16P; 1 port; 5A; 10,000 Cycles; length 7.35mm
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

usb: interface

Package And Footprint

Package / footprint name: SMD
Pin count: Unknown
EasyEDA symbol UUID: 4fe75f804a324c87841119e5f69ce748
EasyEDA footprint UUID: 41e476cc99c64a77839a1ca101818a35
EasyEDA device UUID: 42701b1db9634c9da67e44a0fd03c2eb
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connector, HMI, and mechanical interface seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/TYPEC-304A-ACP16W/3187110.html
Product URL: https://item.szlcsc.com/datasheet/TYPEC-304A-ACP16W/3187110.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category usb-c-connector, interfaces usb, package SMD, and EasyEDA footprint UUID 41e476cc99c64a77839a1ca101818a35.
