TMCS1100A1QDR

Identity

Manufacturer: TI(德州仪器)
Model / MPN: TMCS1100A1QDR
LCSC: C2878188
Category: hall-current-sensor
Description: 1% high-accuracy basic isolated Hall-effect current sensor with ±600V working voltage, ±46A, 3V~5.5V, 3kVrms, 50mV/A, 80kHz.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

analog: interface

Package And Footprint

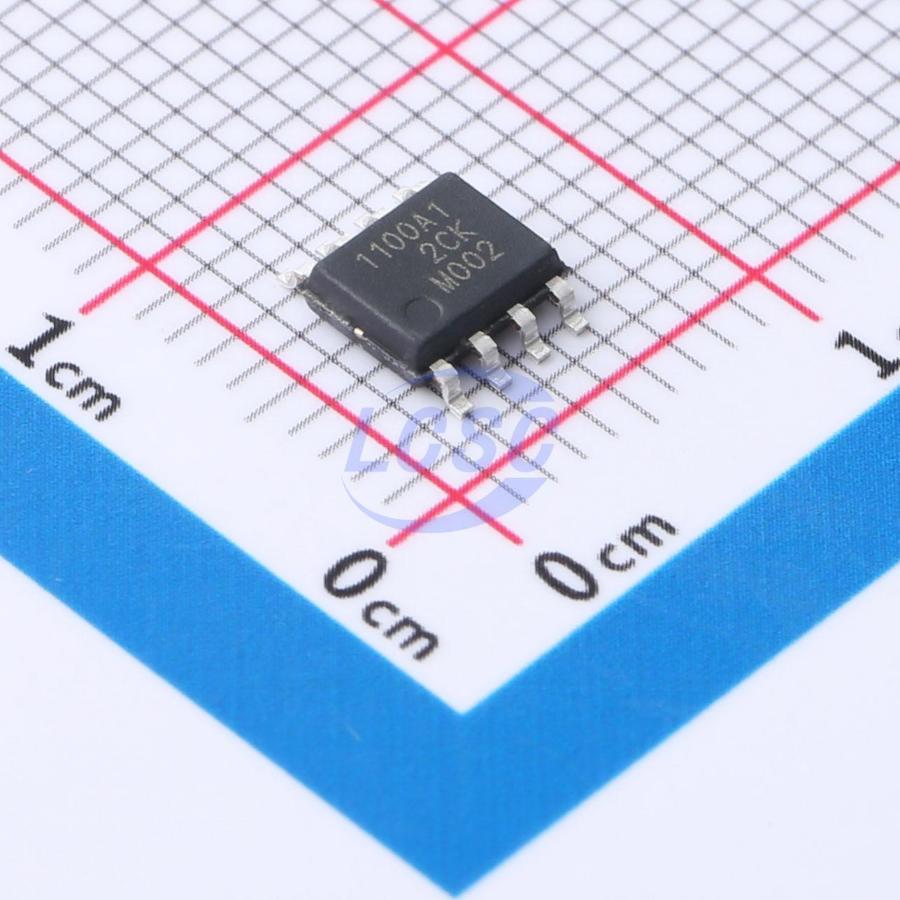

Package / footprint name: SOIC-8
Pin count: 8
EasyEDA symbol UUID: 846c608d761e451dbce43806cc9e5142
EasyEDA footprint UUID: 1645372dca8547f19e87c6a19f78de2a
EasyEDA device UUID: a9322fa26a3e47c6b554cd5ef364a0fc
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: EasyEDA property: 6mA.
Supply rails: EasyEDA property: 3V~5.5V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common power distribution, protection, and sensing seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://www.ti.com/cn/lit/gpn/tmcs1100
Product URL: https://www.ti.com/cn/lit/gpn/tmcs1100
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: galvanically isolated current measurement, motor/load current telemetry, bidirectional current sensing, and noisy high-current paths
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category hall-current-sensor, interfaces analog, package SOIC-8, and EasyEDA footprint UUID 1645372dca8547f19e87c6a19f78de2a.
