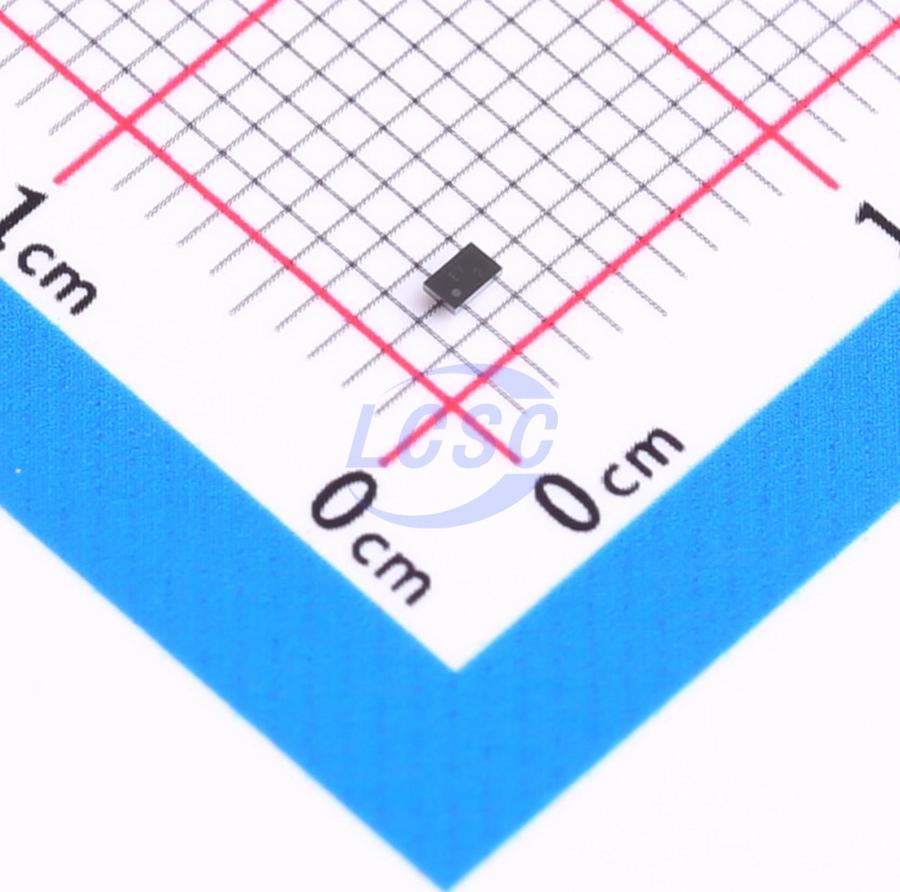

TMP117AIYBGR

Identity

Manufacturer: TI(德州仪器)
Model / MPN: TMP117AIYBGR
LCSC: C2871893
Category: temperature-sensor
Description: High-accuracy low-power digital temperature sensor with SMBus and I2C-compatible interface, ±0.1°C, 1.8V~~5.5V, -55°C~~+150°C, 3.1uA.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

i2c: interface

Package And Footprint

Package / footprint name: DSBGA-6
Pin count: Unknown
EasyEDA symbol UUID: 08ddfb8dd40c48828519276d802b8c5a
EasyEDA footprint UUID: 50e2a198c4934f57bab3a06d05bda507
EasyEDA device UUID: 266cabf8cfd74877a6e30899dfef4970
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: EasyEDA property: 3.1uA.
Supply rails: EasyEDA property: 1.8V~5.5V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common IoT sensors, storage, and communications seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://www.ti.com/cn/lit/gpn/tmp117
Product URL: https://www.ti.com/cn/lit/gpn/tmp117
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: telemetry and environment sensing designs
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category temperature-sensor, interfaces i2c, package DSBGA-6, and EasyEDA footprint UUID 50e2a198c4934f57bab3a06d05bda507.
