TPS3700DDCR2

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: TPS3700DDCR2
• LCSC: C2869617
• Category: voltage-monitor
• Description: High-voltage 18V window voltage detector for overvoltage/undervoltage monitoring with internal reference, 2 channels, 1nA Ib, 29us, 5.5mV, 11uA.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

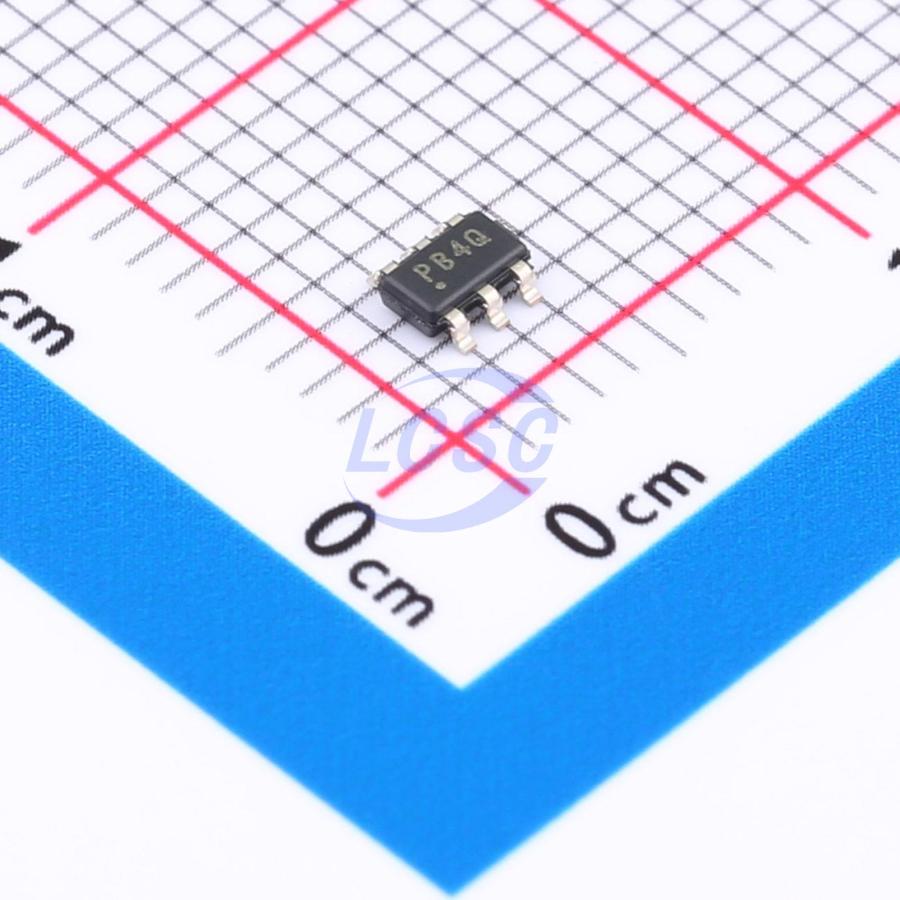

• Package / footprint name: SOT-23-6
• Pin count: 6
• EasyEDA symbol UUID: b64c3d785f4744a0a30372d1d708226d
• EasyEDA footprint UUID: 136db59d42184a44ac8441e35d752b13
• EasyEDA device UUID: ac5028a6e7b449cb87a696ba7773383b
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common power distribution, protection, and sensing seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/tps3700
• Product URL: https://www.ti.com/cn/lit/gpn/tps3700
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: overvoltage, undervoltage, window monitoring, reset generation, rail-good gating, and low-power wake or fault signals
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category voltage-monitor, interfaces gpio, package SOT-23-6, and EasyEDA footprint UUID 136db59d42184a44ac8441e35d752b13.
