TCAN1042HVDQ1

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: TCAN1042HVDQ1
• LCSC: C2869476
• Category: can-transceiver
• Description: Automotive CAN transceiver with CANFD and fault protection, 4.5V5.5V supply, 5Mbps, -55°C+125°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• can: interface

Package And Footprint

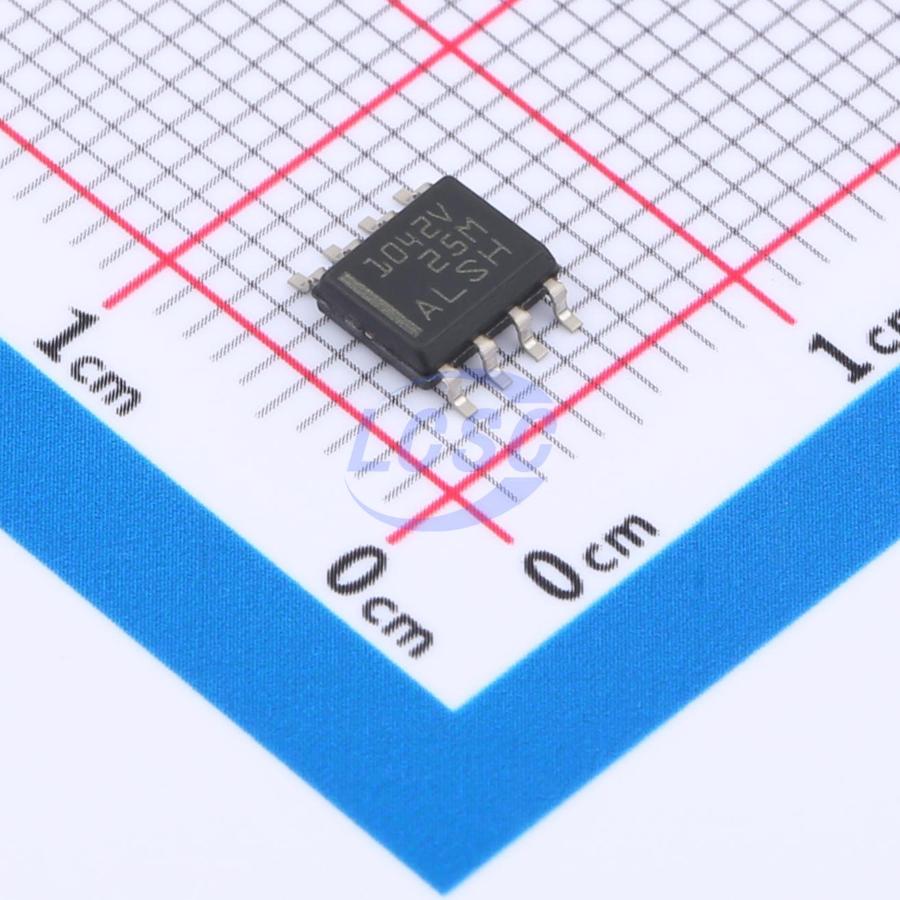

• Package / footprint name: SOIC-8
• Pin count: 8
• EasyEDA symbol UUID: 70c4e24847aa4f378e6af8bcca193e82
• EasyEDA footprint UUID: 1645372dca8547f19e87c6a19f78de2a
• EasyEDA device UUID: 8ac7638d5449488c94b60afe69873e82
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 4.5V~5.5V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified automotive CAN and LIN transceiver seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/tcan1042v-q1
• Product URL: https://www.ti.com/cn/lit/gpn/tcan1042v-q1
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: vehicle and industrial CAN physical layer designs
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category can-transceiver, interfaces can, package SOIC-8, and EasyEDA footprint UUID 1645372dca8547f19e87c6a19f78de2a.
