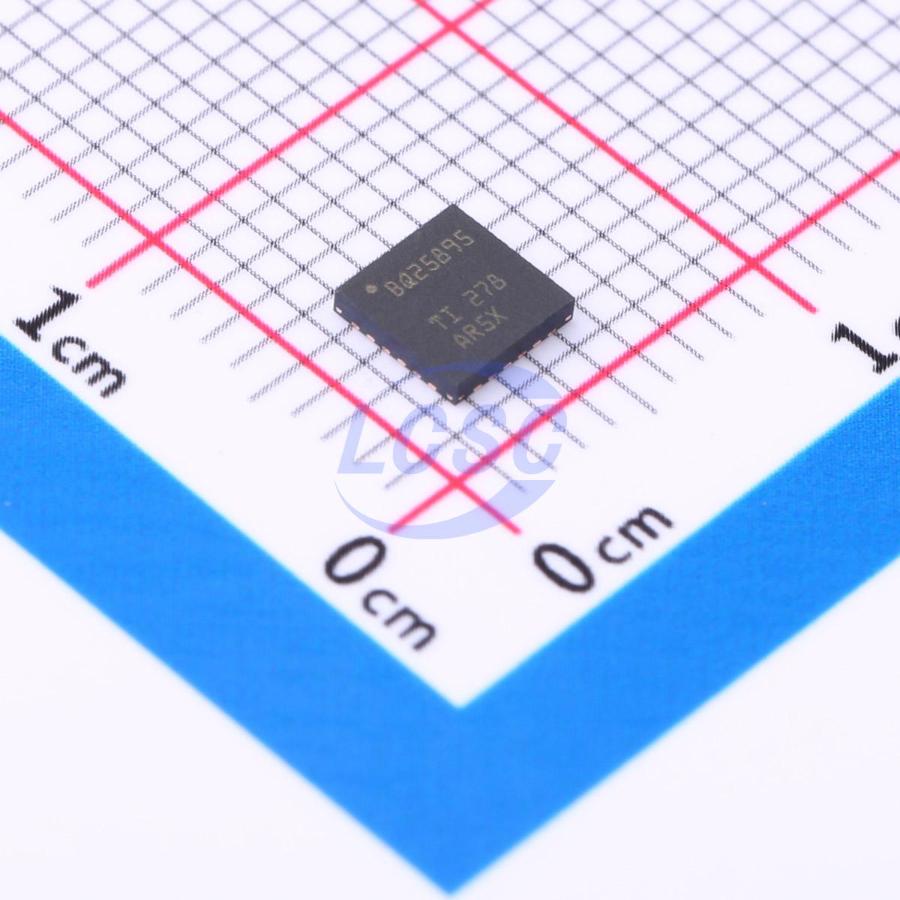

BQ25895RTWT

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: BQ25895RTWT
• LCSC: C2861263
• Category: battery-charger
• Description: I2C-controlled single-cell 5A fast charger with MaxCharge high input voltage and adjustable 3.1A boost, 3.9V~14V, 4.608V, 2.5V.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

• Package / footprint name: WQFN-24-EP(4x4)
• Pin count: Unknown
• EasyEDA symbol UUID: 2e3d34febd194d6181aef79475e0923e
• EasyEDA footprint UUID: 7db0e85517b64b5ab8379c7e1fb0aea9
• EasyEDA device UUID: affea3c5f795479e8811f704bb281504
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 3.9V~14V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common battery management, USB-C power, and power-path seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/ds/symlink/bq25895.pdf
• Product URL: https://www.ti.com/cn/lit/ds/symlink/bq25895.pdf
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category battery-charger, interfaces i2c, package WQFN-24-EP(4x4), and EasyEDA footprint UUID 7db0e85517b64b5ab8379c7e1fb0aea9.
