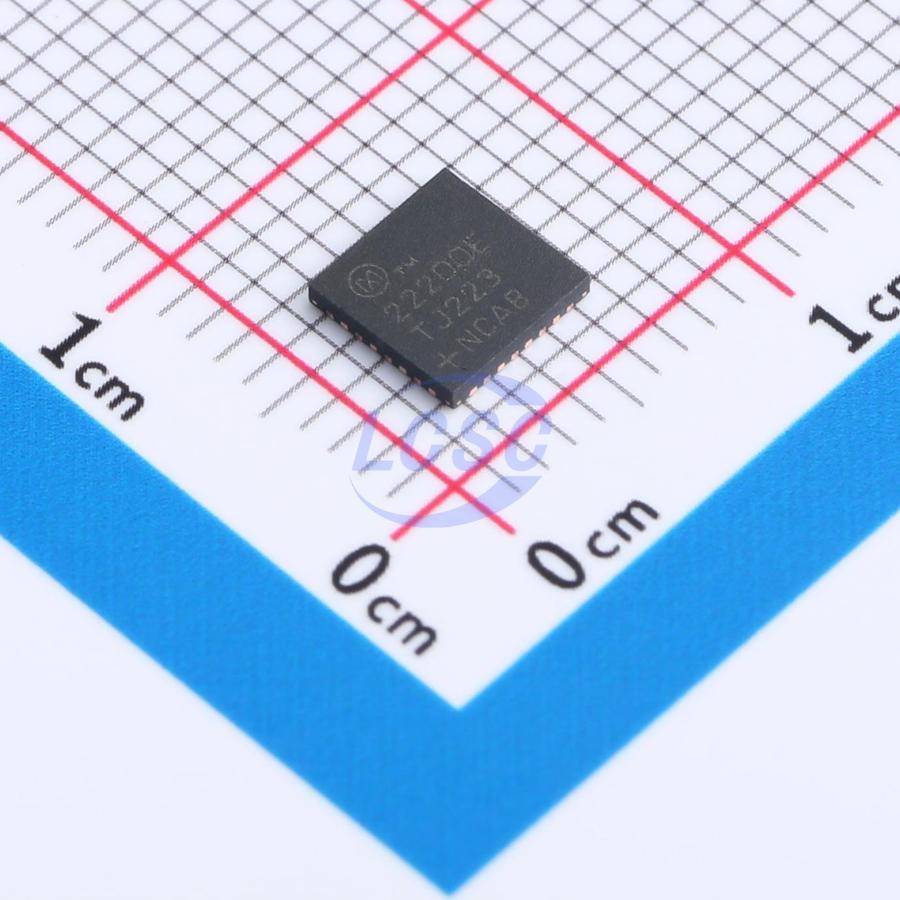

MAX22200ETJ+

Identity

• Manufacturer: ADI(亚德诺)/MAXIM(美信)
• Model / MPN: MAX22200ETJ+
• LCSC: C2845158
• Category: industrial-digital-output
• Description: 8-channel serial-controlled solenoid/motor driver with protection and diagnostics, SPI, RDS(on):200mΩ, -40°C~+85°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• spi: interface

Package And Footprint

• Package / footprint name: TQFN-32(5x5)
• Pin count: Unknown
• EasyEDA symbol UUID: 6082f2d4f50545af949762f95265aeeb
• EasyEDA footprint UUID: 73204e1de0b147a08ddc702a3c8ade86
• EasyEDA device UUID: d244566a4a704820823d8a7964266a0a
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified PLC-style industrial digital I/O seed (24V sinking/sourcing field I/O)
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/MAX22200ETJ%252B/3038294.html
• Product URL: https://item.szlcsc.com/datasheet/MAX22200ETJ%252B/3038294.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category industrial-digital-output, interfaces spi, package TQFN-32(5x5), and EasyEDA footprint UUID 73204e1de0b147a08ddc702a3c8ade86.

Search Keywords

seed:common-industrial-digital-io, source:easyeda-bridge, industrial, digital-io, common-pcb, max22200, octal-output, 24v-field-output, spi, high-side-low-side, half-bridge, industrial-digital-output, tqfn-32-5x5, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-plc-style-industrial-digital-i-o-seed-24v-sinking-sourcing-field-i-o
