STC3115AIQT

Identity

• Manufacturer: ST(意法半导体)
• Model / MPN: STC3115AIQT
• LCSC: C2688637
• Category: fuel-gauge
• Description: Li battery fuel gauge IC for handheld applications with alarm output, I2C, 2.7V4.5V, 1 cell, -40°C+85°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

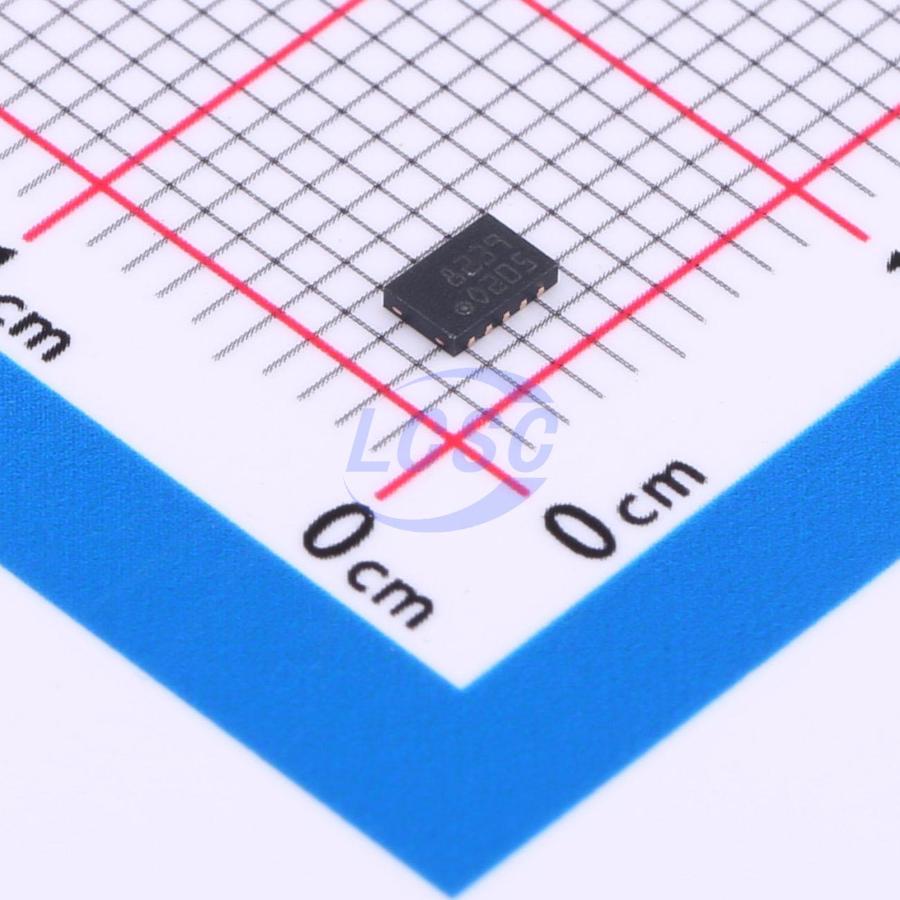

• Package / footprint name: DFN-10(2x3)
• Pin count: 10
• EasyEDA symbol UUID: 7cac29f3c3454135b2e4f482a405be3e
• EasyEDA footprint UUID: 7364da5e09a74c8096aea7d379289a1d
• EasyEDA device UUID: 7a5e80fae1134481afbbfb7858ed038d
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 2.7V~4.5V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common connectors, power, UI, and protection seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/STC3115AIQT/2794432.html
• Product URL: https://item.szlcsc.com/datasheet/STC3115AIQT/2794432.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category fuel-gauge, interfaces i2c, package DFN-10(2x3), and EasyEDA footprint UUID 7364da5e09a74c8096aea7d379289a1d.
