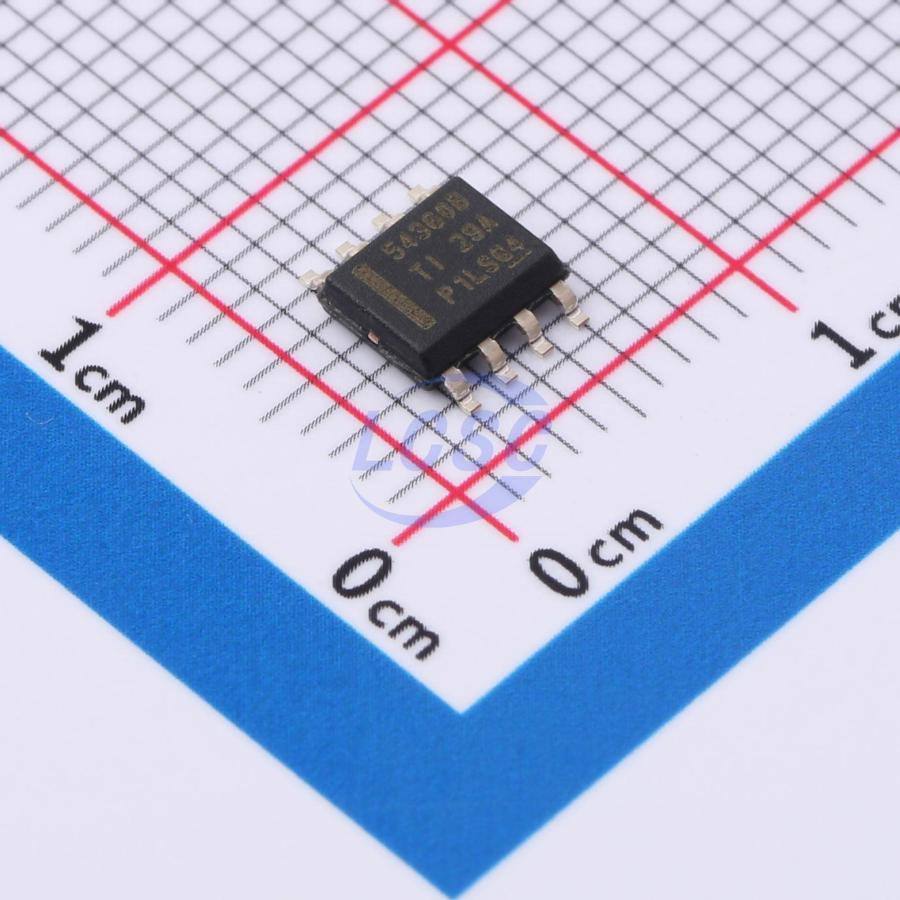

TPS54360BQDDARQ1

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: TPS54360BQDDARQ1
• LCSC: C2687968
• Category: buck-converter
• Description: Step-down converter, 3.5A, 4.5V60V supply, 800mV58.8V output, 2.5MHz switching frequency, -40°C~+150°C@(TJ).
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: SO-8-EP
• Pin count: Unknown
• EasyEDA symbol UUID: 3e0755b19ae1416faac9027789b45080
• EasyEDA footprint UUID: 104a495267694f7ea8829719922fb0d3
• EasyEDA device UUID: 29046038f67b43389d7194aa40a813ea
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 4.5V~60V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified automotive wide-input buck/boost regulator seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/tps54360b-q1
• Product URL: https://www.ti.com/cn/lit/gpn/tps54360b-q1
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: power-tree designs when ratings and layout constraints fit
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category buck-converter, interfaces none captured, package SO-8-EP, and EasyEDA footprint UUID 104a495267694f7ea8829719922fb0d3.

Search Keywords

seed:common-automotive-wide-input-regulators, source:easyeda-bridge, automotive, common-pcb, power-tree, tps54360, 60v-input, 3.5a, automotive-q1, ti, buck-converter, so-8-ep, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-automotive-wide-input-buck-boost-regulator-seed
