USBLC6-2SC6

Identity

• Manufacturer: UMW(友台半导体)
• Model / MPN: USBLC6-2SC6
• LCSC: C2687116
• Category: usb-esd-protection
• Description: USBLC6-2SC6 ESD protection; max clamp 15V; breakdown 6V; dual lines; Type:ESD
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• usb: interface

Package And Footprint

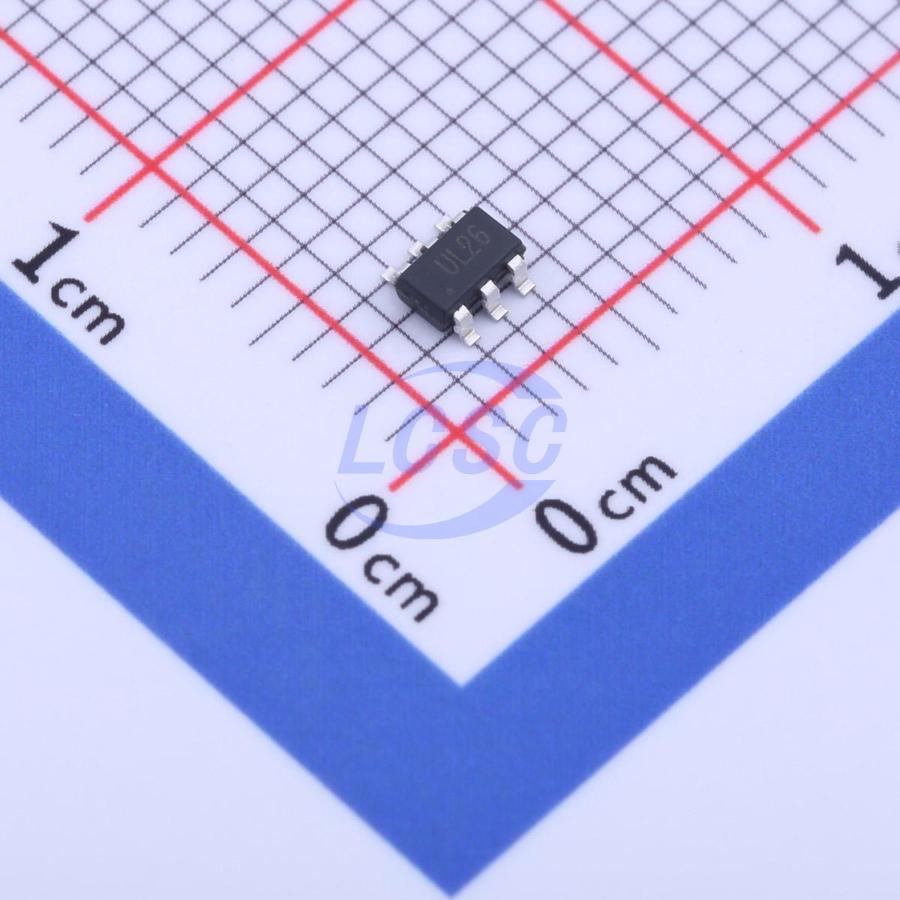

• Package / footprint name: SOT-23-6
• Pin count: 6
• EasyEDA symbol UUID: 26a46325b3824183ad1c0ede0bb5fc10
• EasyEDA footprint UUID: 136db59d42184a44ac8441e35d752b13
• EasyEDA device UUID: ffc684148de54c398d1e27ebb6c96101
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common board support, timing, EMI, and protection seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://atta.szlcsc.com/upload/public/pdf/source/20231109/512642D850D9873E7C519F71E85B9A10.pdf
• Product URL: https://atta.szlcsc.com/upload/public/pdf/source/20231109/512642D850D9873E7C519F71E85B9A10.pdf
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category usb-esd-protection, interfaces usb, package SOT-23-6, and EasyEDA footprint UUID 136db59d42184a44ac8441e35d752b13.
