TS-1109TP-C

Identity

Manufacturer: XKB Connection(中国星坤)
Model / MPN: TS-1109TP-C
LCSC: C2684718
Category: tactile-switch

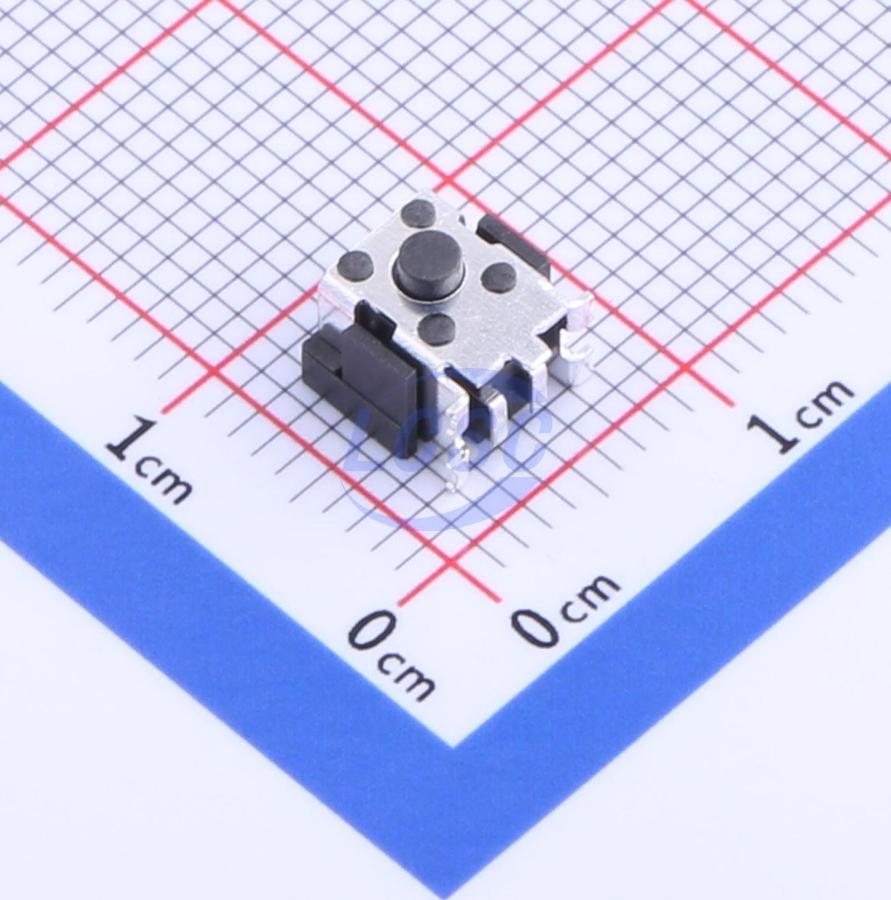

Description: TS-1109TP-C 4.5x4.5x3.8 bracket tactile switch; SPST; round button; 2.6N; height 3.85mm; 50mA; 12V; black; 100,000 Cycles
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

gpio: interface

Package And Footprint

Package / footprint name: SMD,4.5x4.5mm
Pin count: Unknown
EasyEDA symbol UUID: 126a244230684fb5a9bc244a4e595859
EasyEDA footprint UUID: ae25305d33a549c0a3c94d8cd1df315f
EasyEDA device UUID: 3d099de5fba846ff8acccfd204fbaef8
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: 12V
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connector, HMI, and mechanical interface seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/TS-1109TP-C/2783280.html
Product URL: https://item.szlcsc.com/datasheet/TS-1109TP-C/2783280.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category tactile-switch, interfaces gpio, package SMD,4.5x4.5mm, and EasyEDA footprint UUID ae25305d33a549c0a3c94d8cd1df315f.
