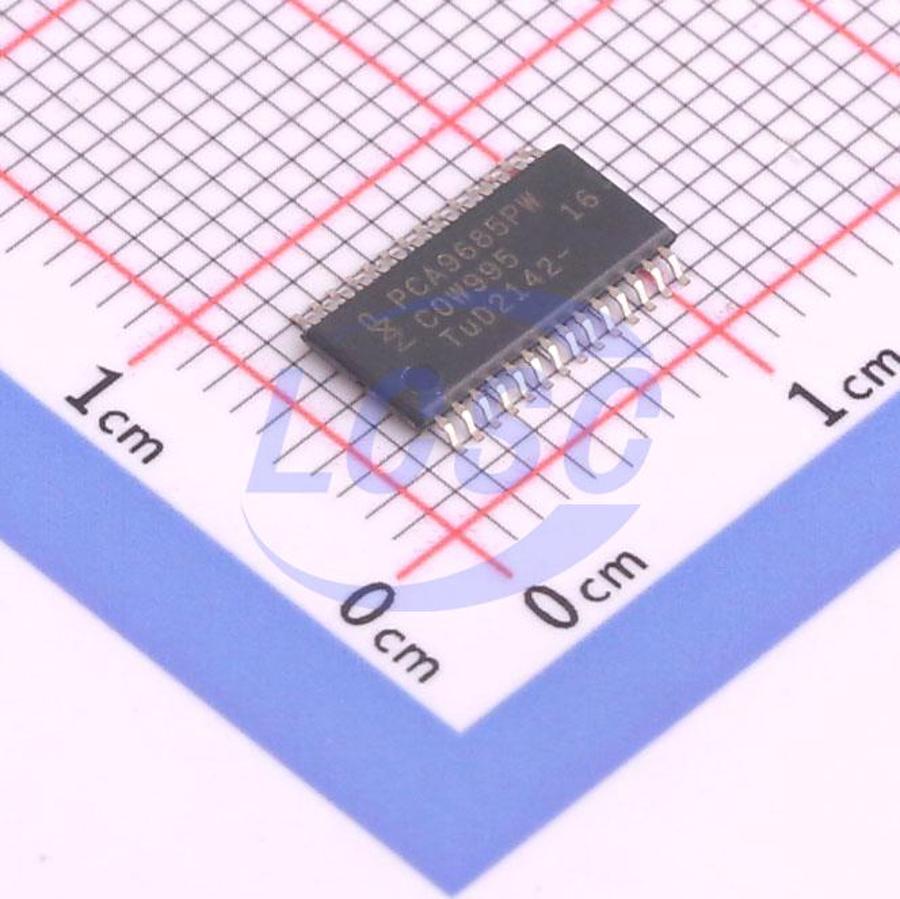

PCA9685PW,118

Identity

Manufacturer: NXP(恩智浦)
Model / MPN: PCA9685PW,118
LCSC: C2678753
Category: pwm-driver
Description: 16-channel 12-bit PWM Fm+ I2C LED controller, 2.3V~~5.5V DC input, 100kHz~~1MHz, 5.5V output, 25mA output, PWM dimming.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

i2c: interface
pwm: interface

Package And Footprint

Package / footprint name: TSSOP-28
Pin count: 28
EasyEDA symbol UUID: a1ed322e59454fc58fb6ffd222b0e820
EasyEDA footprint UUID: ca390b72972f47dc8f86e88e3241ff4c
EasyEDA device UUID: a51c16894e0345ff8535057fab14eff7
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://www.nxp.com.cn/docs/en/data-sheet/PCA9685.pdf
Product URL: https://www.nxp.com.cn/docs/en/data-sheet/PCA9685.pdf
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category pwm-driver, interfaces i2c, pwm, package TSSOP-28, and EasyEDA footprint UUID ca390b72972f47dc8f86e88e3241ff4c.

Search Keywords

seed:common-drivers-isolation-actuation, source:easyeda-bridge, iot, common-pcb, pca9685, 16-channel, 12-bit, pwm, servo, led-driver, pwm-driver, tssop-28, jlc-extended, i2c, jlc_extended, jlc-note:easyeda-jlc-verified-common-drivers-isolation-and-actuation-seed
