PCA9634PW,118

Identity

• Manufacturer: NXP(恩智浦)
• Model / MPN: PCA9634PW,118
• LCSC: C2678581
• Category: pwm-driver
• Description: 8-bit Fm+ I2C bus LED driver, 2.3V~5.5V DC input, 25MHz switching, 8 channels, 5.5V output, 25mA output, PWM/Analog dimming.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

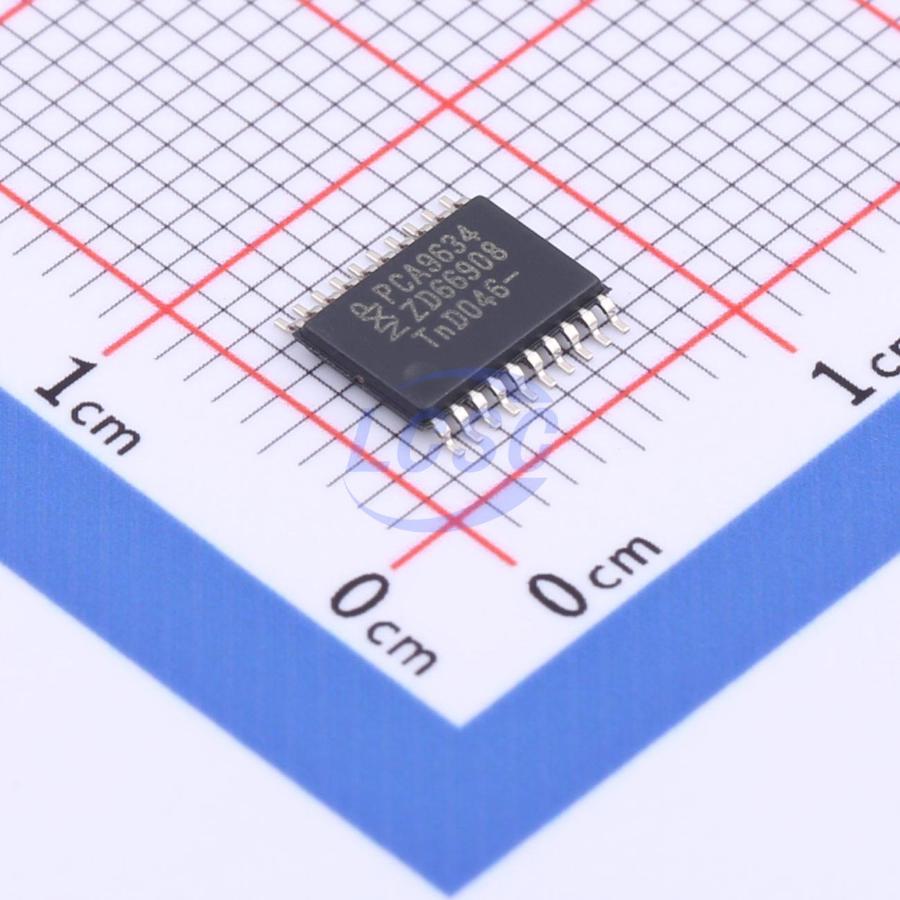

• Package / footprint name: TSSOP-20
• Pin count: 20
• EasyEDA symbol UUID: 171125ae2d9342d0998f41655e8804bb
• EasyEDA footprint UUID: 91fc5991e0a74a82ab525cc9f2487f9f
• EasyEDA device UUID: c0f1d6d3c1c84ea69e7e59adb008cef6
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified second batch of second-source/alternate seed for IC categories that only had one option
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.nxp.com.cn/docs/en/data-sheet/PCA9634.pdf
• Product URL: https://www.nxp.com.cn/docs/en/data-sheet/PCA9634.pdf
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category pwm-driver, interfaces i2c, package TSSOP-20, and EasyEDA footprint UUID 91fc5991e0a74a82ab525cc9f2487f9f.

Search Keywords

seed:common-single-option-category-expansion-2, source:easyeda-bridge, second-source, common-pcb, pca9634, 8-channel, 12-bit, i2c, second-source-of:pca9685, smaller-channel-count, pwm-driver, tssop-20, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-second-batch-of-second-source-alternate-seed-for-ic-categories-that-only-had-one-option
