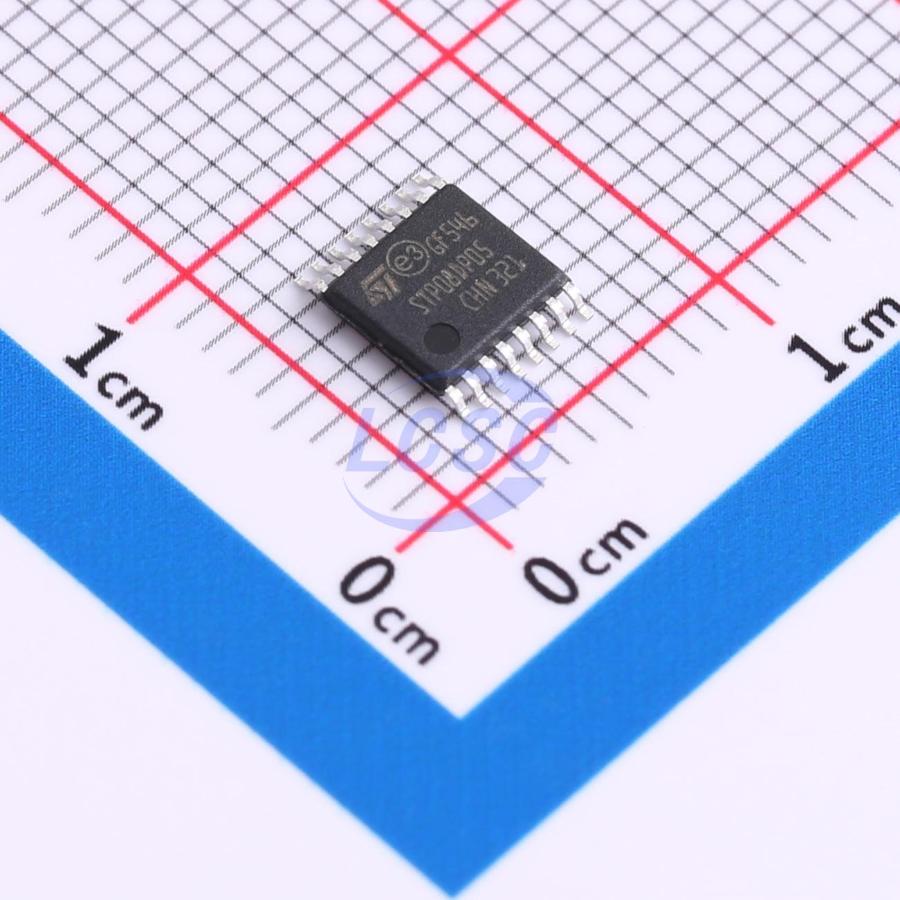

STP08DP05TTR

Identity

Manufacturer: ST(意法半导体)
Model / MPN: STP08DP05TTR
LCSC: C2678542
Category: power-shift-register
Description: Low-voltage 8-bit constant-current LED sink driver with output error detection, 3V~5.5V input, 30MHz, 8 channels, 20V, 100mA, PWM.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: TSSOP-16
Pin count: 16
EasyEDA symbol UUID: e86239457bb64eed8d0988abe481156a
EasyEDA footprint UUID: a11950ceac50438289ff689a35fd9574
EasyEDA device UUID: 707352dcb1b1475b9c2a6b360e50e7e0
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified second batch of second-source/alternate seed for IC categories that only had one option
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/STP08DP05TTR/2770459.html
Product URL: https://item.szlcsc.com/datasheet/STP08DP05TTR/2770459.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category power-shift-register, interfaces none captured, package TSSOP-16, and EasyEDA footprint UUID a11950ceac50438289ff689a35fd9574.
