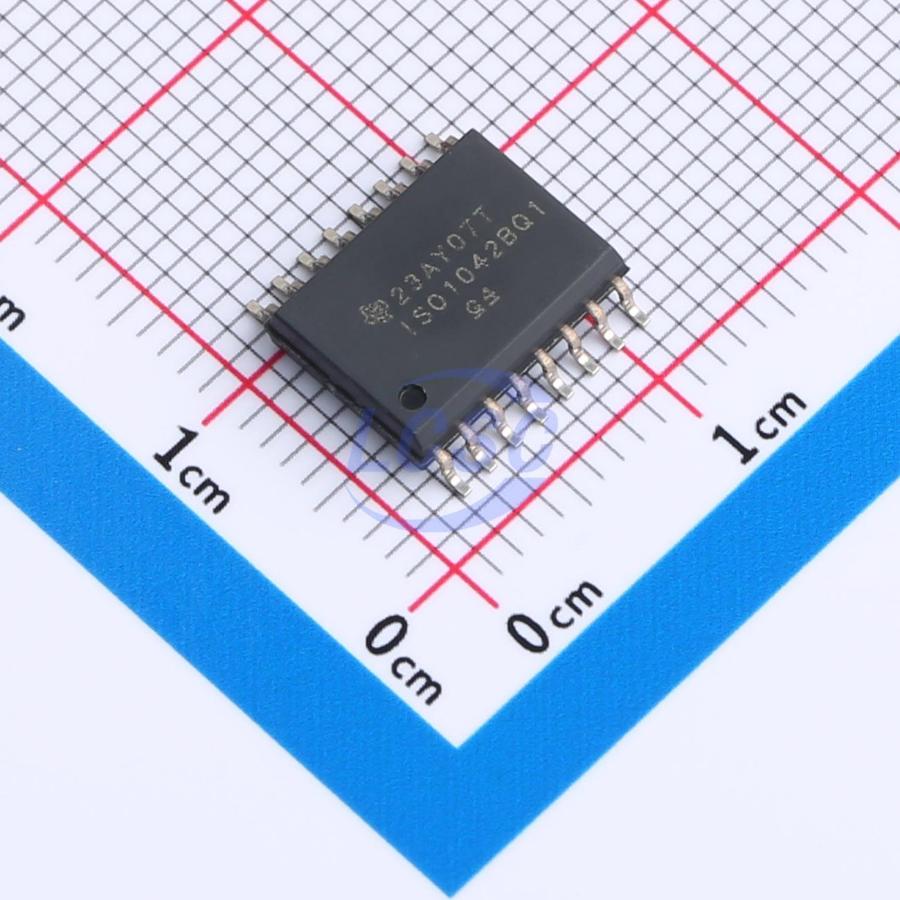

ISO1042BQDWRQ1

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: ISO1042BQDWRQ1
• LCSC: C2671623
• Category: isolated-can-transceiver
• Description: ISO1042-Q1 automotive isolated CAN transceiver, 5Mbps, supply 1.71V1.89V;2.25V5.5V;4.5V5.5V, 73.4mA, -40°C+125°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• can: interface

Package And Footprint

• Package / footprint name: SOIC-16-7.4mm
• Pin count: 16
• EasyEDA symbol UUID: c6b47f54225748b9b1e2fefb0f32c747
• EasyEDA footprint UUID: 8e7810c008554c36b3be6bab538328a8
• EasyEDA device UUID: 7d47ce1c508a48928f2baf7e4ce19339
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: EasyEDA property: 73.4mA.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified automotive CAN and LIN transceiver seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/iso1042-q1
• Product URL: https://www.ti.com/cn/lit/gpn/iso1042-q1
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category isolated-can-transceiver, interfaces can, package SOIC-16-7.4mm, and EasyEDA footprint UUID 8e7810c008554c36b3be6bab538328a8.
