LIS3DHHTR

Identity

• Manufacturer: ST(意法半导体)
• Model / MPN: LIS3DHHTR
• LCSC: C2655077
• Category: accelerometer
• Description: 3-axis digital output accelerometer, 1.71V~3.6V, SPI, X,Y,Z sensing, ±2.5g range, 1 output bit.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• spi: interface

Package And Footprint

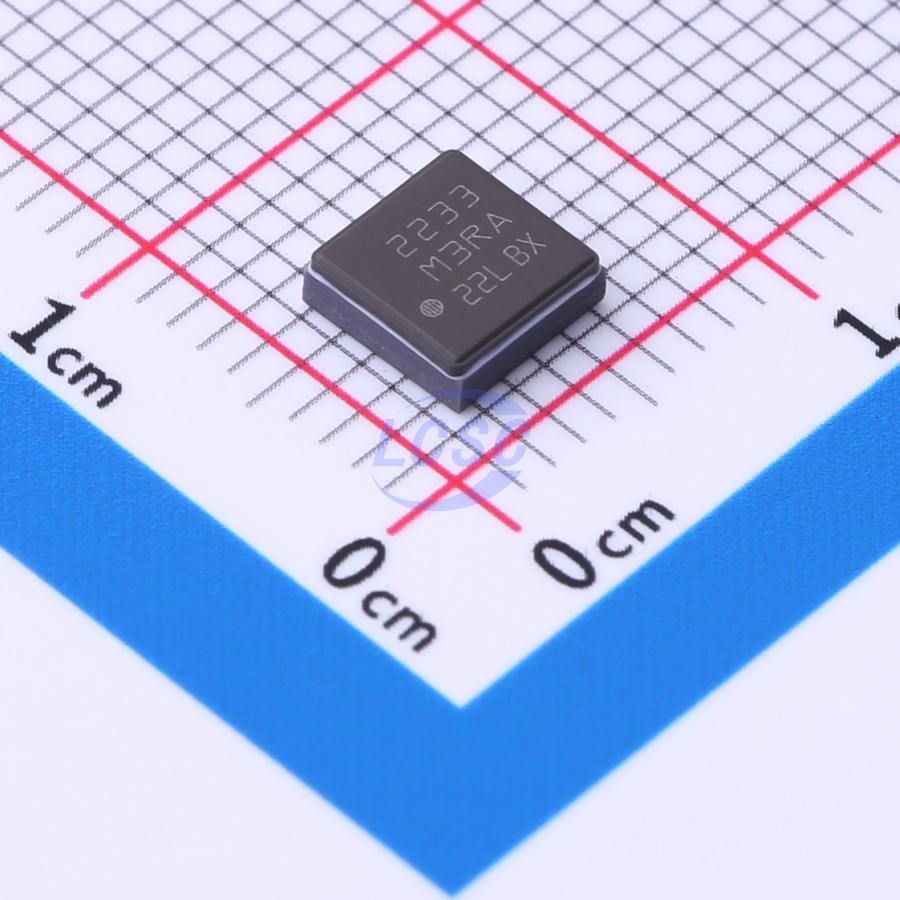

• Package / footprint name: CCLGA-16(5x5)
• Pin count: Unknown
• EasyEDA symbol UUID: cc7ff0a18eb14735b6d756317f183ebc
• EasyEDA footprint UUID: 8e0295d5dfab45adb383fe19b70cf5d9
• EasyEDA device UUID: 69e4bf6d28f84c248837fe0dfaa6c8d2
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 1.71V~3.6V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common environment, motion, light, proximity, and temperature sensor seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/LIS3DHHTR/2746986.html
• Product URL: https://item.szlcsc.com/datasheet/LIS3DHHTR/2746986.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: motion wake, tilt/orientation, vibration monitoring, impact detection, tap detection, and low-power activity sensing
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category accelerometer, interfaces spi, package CCLGA-16(5x5), and EasyEDA footprint UUID 8e0295d5dfab45adb383fe19b70cf5d9.
