MCP6002T-I/MS

Identity

Manufacturer: MICROCHIP(美国微芯)
Model / MPN: MCP6002T-I/MS
LCSC: C2652308
Category: op-amp
Description: Dual 1 MHz low-power op amp, 2 channels, 6V max supply, rail-to-rail input/output, 1MHz GBW, 4.5mV Vos, 2uV/°C drift, 600V/ms slew.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

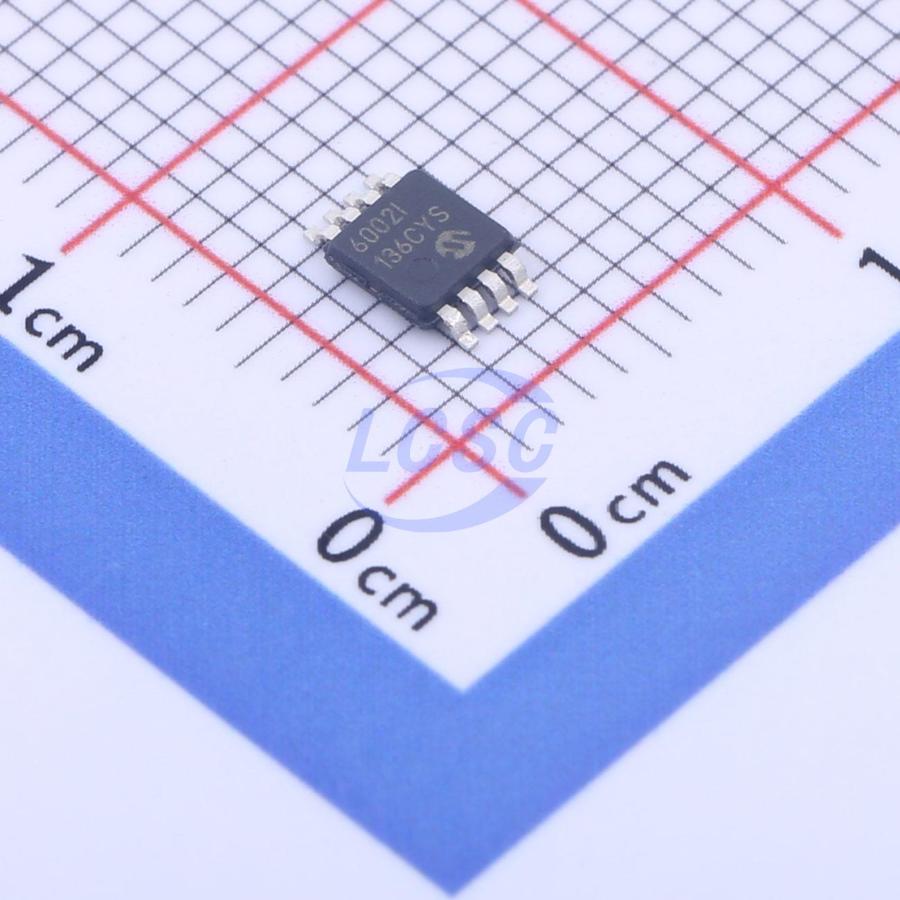

Package / footprint name: MSOP-8
Pin count: Unknown
EasyEDA symbol UUID: 16024eba5aca43808af352e04e0611c9
EasyEDA footprint UUID: a138b7ffc0344dc7a9c23c13a37b0843
EasyEDA device UUID: 952e9df4501245b9b35a9eac00856511
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common power, analog, and interface IC seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/MCP6002T-I%252FMS/2744217.html
Product URL: https://item.szlcsc.com/datasheet/MCP6002T-I%252FMS/2744217.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: sensor front ends, analog buffering, filtering, scaling, and current-sense signal conditioning
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category op-amp, interfaces none captured, package MSOP-8, and EasyEDA footprint UUID a138b7ffc0344dc7a9c23c13a37b0843.
