CAP1203-1-AC3-TR

Identity

Manufacturer: MICROCHIP(美国微芯)
Model / MPN: CAP1203-1-AC3-TR
LCSC: C2652075
Category: capacitive-touch-controller
Description: CAP1203 1 AC3 TR 3V~~5.5V Operating Voltage:3V~~5.5V Operating Voltage:3V~5.5V
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

i2c: interface
gpio: interface

Package And Footprint

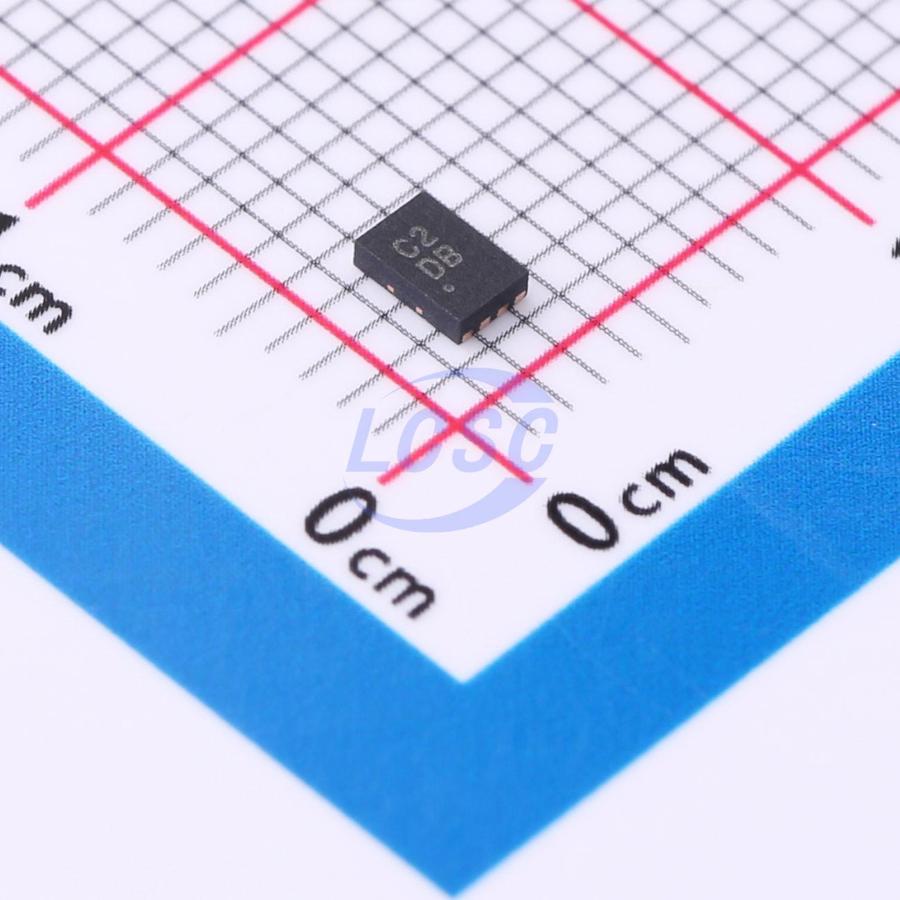

Package / footprint name: TDFN-8-EP(2x3)
Pin count: 8
EasyEDA symbol UUID: 9f4765cffc124c059de038cc7e730bfc
EasyEDA footprint UUID: 0b1a2b2b617a4a9d9d961130ec77666d
EasyEDA device UUID: 91384ad495aa40bd97e7e9fe61f02c43
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 3V~5.5V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common HMI, display, audio, touch, and haptic seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://atta.szlcsc.com/upload/public/pdf/source/20211007/C2652075_8E53FEE42FD7C35323B1F5B8F38E8C32.pdf
Product URL: https://atta.szlcsc.com/upload/public/pdf/source/20211007/C2652075_8E53FEE42FD7C35323B1F5B8F38E8C32.pdf
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: sealed HMI controls, touch buttons, touch panels, wake inputs, and low-profile user interfaces
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category capacitive-touch-controller, interfaces i2c, gpio, package TDFN-8-EP(2x3), and EasyEDA footprint UUID 0b1a2b2b617a4a9d9d961130ec77666d.
