CAP1203-1-SN-TR
Identity
- Manufacturer: MICROCHIP(美国微芯)
- Model / MPN: CAP1203-1-SN-TR
- LCSC: C2652054
- Category: capacitive-touch-controller
- Description: CAP1203 1 SN TR 3V
5.5V Number of Channels:3 Voltage - Supply:3V5.5V Voltage - Supply:3V5.5V Operating Temperature:-40℃+125℃ Operating Temperature:-40℃~+125℃ - Source: EasyEDA/JLC verified common component seed
- Project designators: Not project-specific
- Project quantity per board: Not project-specific
Capabilities
- i2c: interface
- gpio: interface
Package And Footprint

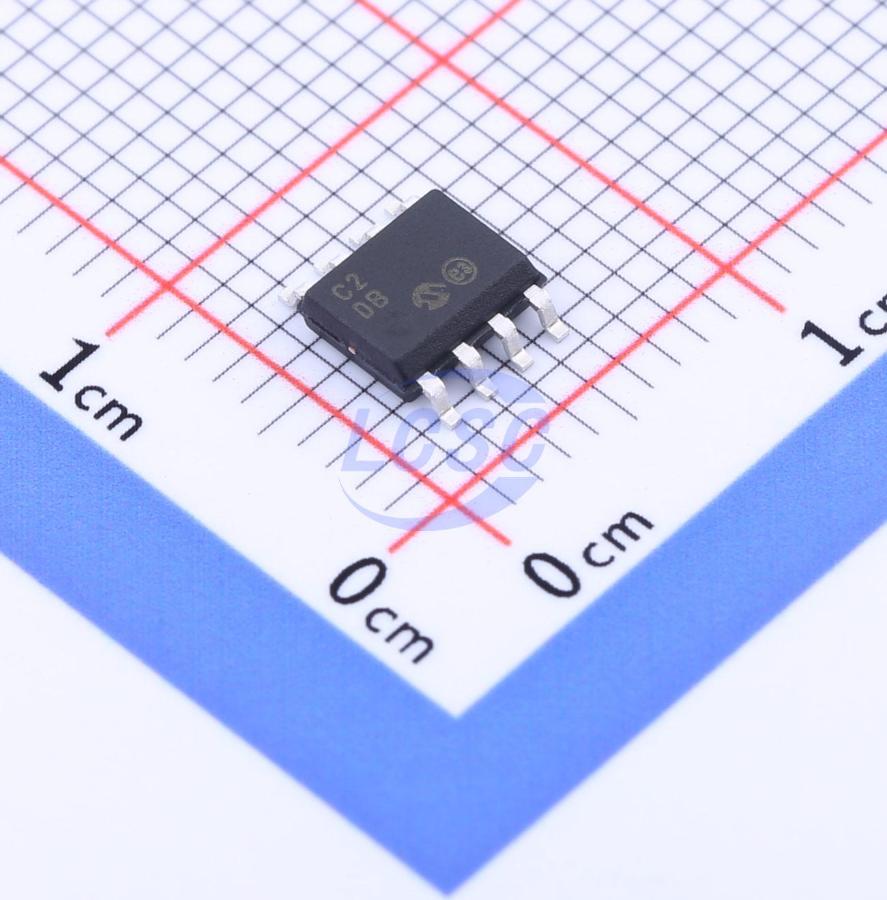

- Package / footprint name: SOIC-8
- Pin count: 8
- EasyEDA symbol UUID: 051eb1266e5b49da92fc881a4b547fa8
- EasyEDA footprint UUID: a21abe53057c4752a13d1e8ec2866de7
- EasyEDA device UUID: d542a27706fb4d9eb76f21feeb698bf9
- EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87
Power And Operating Modes
- Active current: Not characterized in seed; extract active current from datasheet tables.
- Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
- Supply rails: EasyEDA property: 3V~5.5V.
- Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.
Procurement Classification
- JLC class: Extended Part
- JLC note / assembly basis: EasyEDA/JLC verified common HMI, display, audio, touch, and haptic seed
- Assembly status: jlc_extended
- Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
- Live stock: intentionally not stored as durable selection data; refresh externally before ordering.
Datasheet And Links
- Datasheet / product URL: https://item.szlcsc.com/datasheet/CAP1203-1-SN-TR/2743963.html
- Product URL: https://item.szlcsc.com/datasheet/CAP1203-1-SN-TR/2743963.html
- Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.
Selection Notes
- Good for: sealed HMI controls, touch buttons, touch panels, wake inputs, and low-profile user interfaces
- Avoid when: Not captured yet.
- Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
- Equivalent search hints: match category
capacitive-touch-controller, interfaces i2c, gpio, packageSOIC-8, and EasyEDA footprint UUIDa21abe53057c4752a13d1e8ec2866de7.
Search Keywords
seed:common-hmi-display-audio, source:easyeda-bridge, iot, common-pcb, hmi, display, audio, cap1203, three-channel, capacitive-touch, i2c, soic, capacitive-touch-controller, soic-8, jlc-extended, gpio, jlc_extended, jlc-note:easyeda-jlc-verified-common-hmi-display-audio-touch-and-haptic-seed
