PCF8523TK/1,118

Identity

• Manufacturer: NXP(恩智浦)
• Model / MPN: PCF8523TK/1,118
• LCSC: C2651518
• Category: rtc
• Description: PCF8523TK/1,118 1V5.5V I2C Interface:I2C Voltage - Supply:1V5.5V Voltage - Supply:1V~5.5V crystal oscillator:Built-In Alarm Output:Yes Quiescent Current(Iq):150nA
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

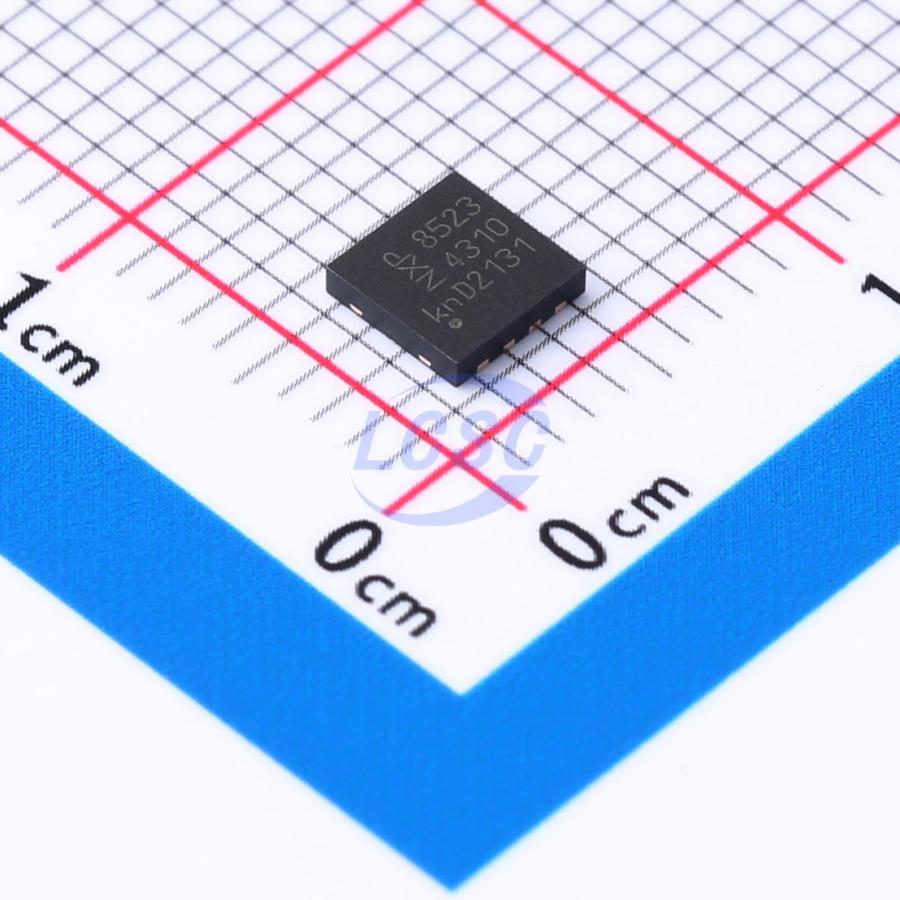

• Package / footprint name: XSON-8-EP(4x4)
• Pin count: Unknown
• EasyEDA symbol UUID: ac36b832cd76422ab217b4e59e112aaa
• EasyEDA footprint UUID: 0f6a9ed1f1094ed6b22b5550df19910f
• EasyEDA device UUID: df836a503bff4264854c95f1966eae37
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 1V~5.5V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common memory, timing, storage, and security seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.nxp.com.cn/docs/en/data-sheet/PCF8523.pdf
• Product URL: https://www.nxp.com.cn/docs/en/data-sheet/PCF8523.pdf
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: battery-backed timekeeping, scheduled wakeups, timestamped logs, and low-power systems that need wall-clock time
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category rtc, interfaces i2c, package XSON-8-EP(4x4), and EasyEDA footprint UUID 0f6a9ed1f1094ed6b22b5550df19910f.
