MAX40200AUK+T

Identity

• Manufacturer: ADI(亚德诺)/MAXIM(美信)
• Model / MPN: MAX40200AUK+T
• LCSC: C2649430
• Category: ideal-diode-controller
• Description: Ultra-small micropower 1A ideal diode with ultra-low voltage drop
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

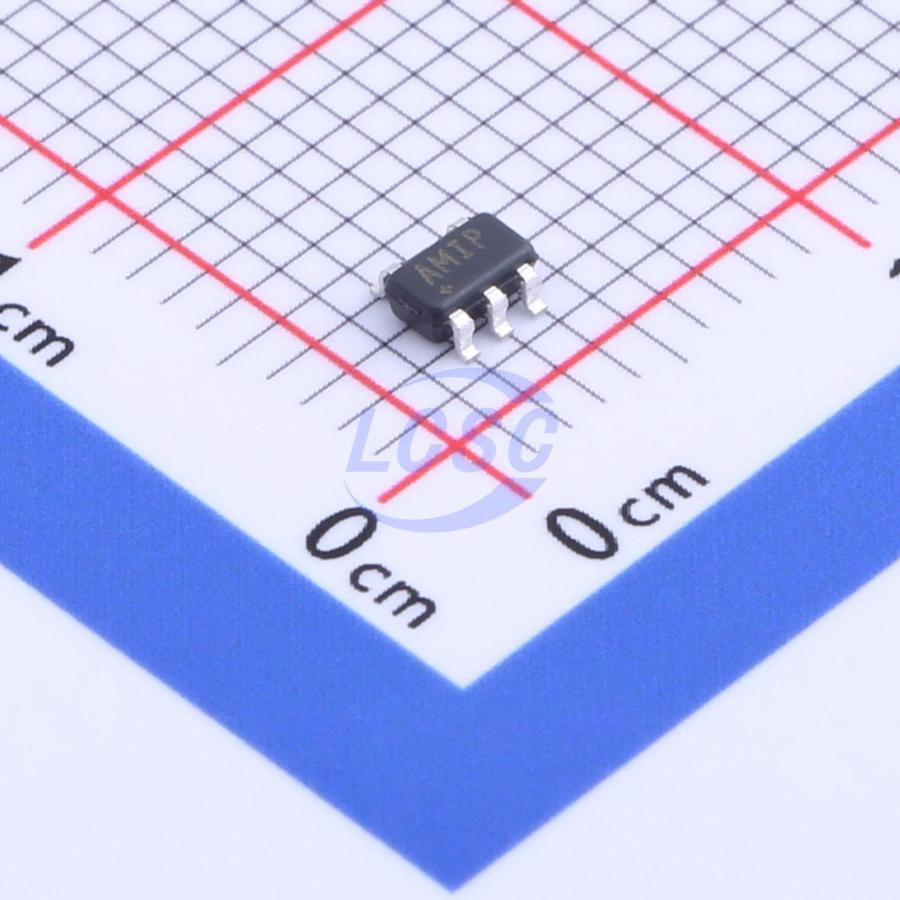

• Package / footprint name: SOT-23-5
• Pin count: 5
• EasyEDA symbol UUID: 215faeaa1de7434f8484733f8d00dbba
• EasyEDA footprint UUID: 42e6c81692364c6aa20fe0e379313c99
• EasyEDA device UUID: f58b84ffae6b483d8f14d834ba81241c
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common power distribution, protection, and sensing seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/MAX40200AUK%252BT/2741339.html
• Product URL: https://item.szlcsc.com/datasheet/MAX40200AUK%252BT/2741339.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reverse-polarity protection, low-loss ORing, battery/adapter power-path selection, and backfeed blocking
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category ideal-diode-controller, interfaces none captured, package SOT-23-5, and EasyEDA footprint UUID 42e6c81692364c6aa20fe0e379313c99.
