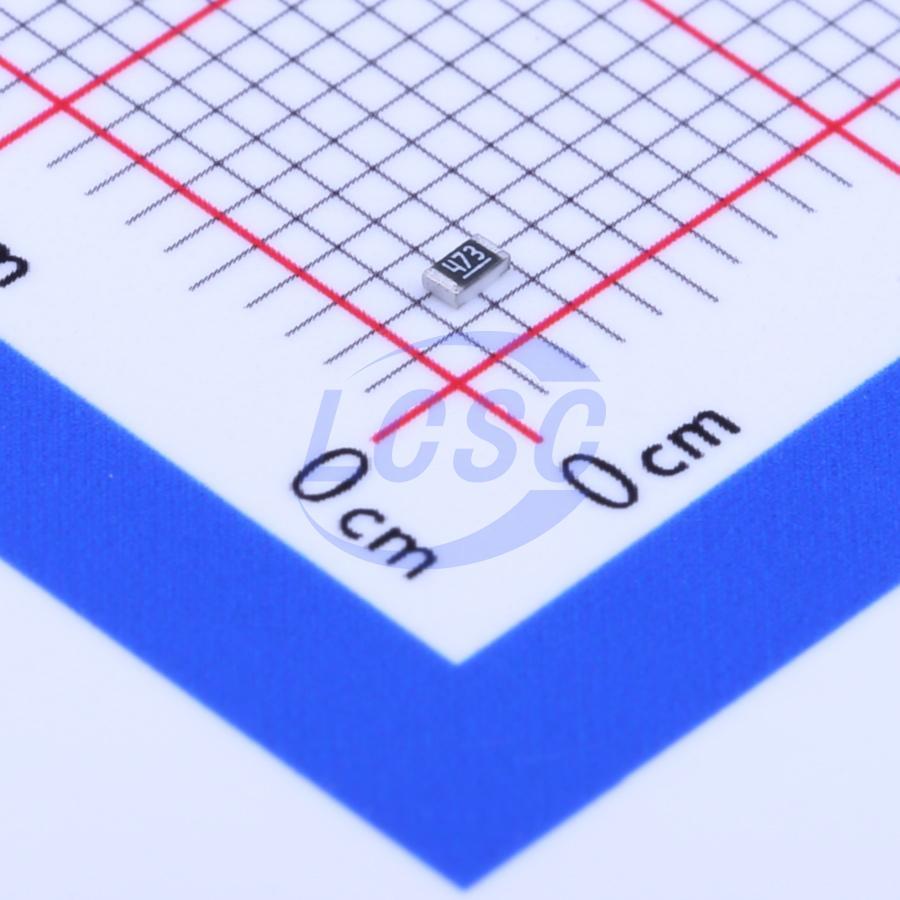

0603WAF4702T5E

Identity

• Manufacturer: UNI-ROYAL(厚声)
• Model / MPN: 0603WAF4702T5E
• LCSC: C25819
• Category: resistor
• Description: 0603 47kΩ ±1% 100mW thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: 0603
• Pin count: Unknown
• EasyEDA symbol UUID: c62c38ff04cd4130ab0cff48f7622214
• EasyEDA footprint UUID: b44c1b381d26462586b8a8d9fac22ec8
• EasyEDA device UUID: b37953171ed04bc6822268db8e82ce1c
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: 75V
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Basic Part
• JLC note / assembly basis: EasyEDA/JLC verified common passives and discretes seed
• Assembly status: jlc_basic
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/0603WAF4702T5E/26562.html
• Product URL: https://item.szlcsc.com/datasheet/0603WAF4702T5E/26562.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category resistor, interfaces none captured, package 0603, and EasyEDA footprint UUID b44c1b381d26462586b8a8d9fac22ec8.
