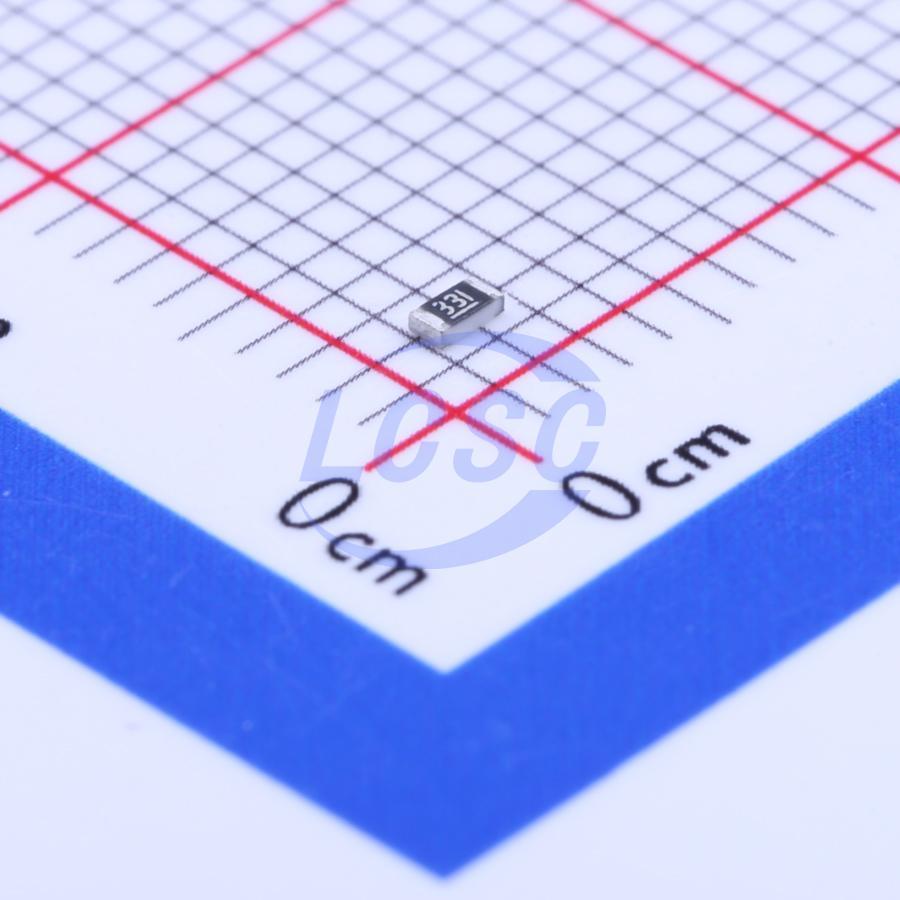

0603WAF3300T5E

Identity

Manufacturer: UNI-ROYAL(厚声)
Model / MPN: 0603WAF3300T5E
LCSC: C23138
Category: resistor
Description: 0603 330Ω ±1% 100mW thick film resistor; TCR ±100ppm/°C; -55°C~+155°C
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: 0603
Pin count: Unknown
EasyEDA symbol UUID: d7a52d1e7e224bcba3b95a9220f2405a
EasyEDA footprint UUID: b44c1b381d26462586b8a8d9fac22ec8
EasyEDA device UUID: 0a9f3a313c9145cf8517fd23769490cb
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Basic Part
JLC note / assembly basis: EasyEDA/JLC verified common resistor and capacitor value seed
Assembly status: jlc_basic
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://atta.szlcsc.com/upload/public/pdf/source/20200306/C422600_1E6D84923E4A46A82E41ADD87F860B5C.pdf
Product URL: https://atta.szlcsc.com/upload/public/pdf/source/20200306/C422600_1E6D84923E4A46A82E41ADD87F860B5C.pdf
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category resistor, interfaces none captured, package 0603, and EasyEDA footprint UUID b44c1b381d26462586b8a8d9fac22ec8.
