KT-0603W

Identity

• Manufacturer: KENTO
• Model / MPN: KT-0603W
• LCSC: C2290
• Category: led

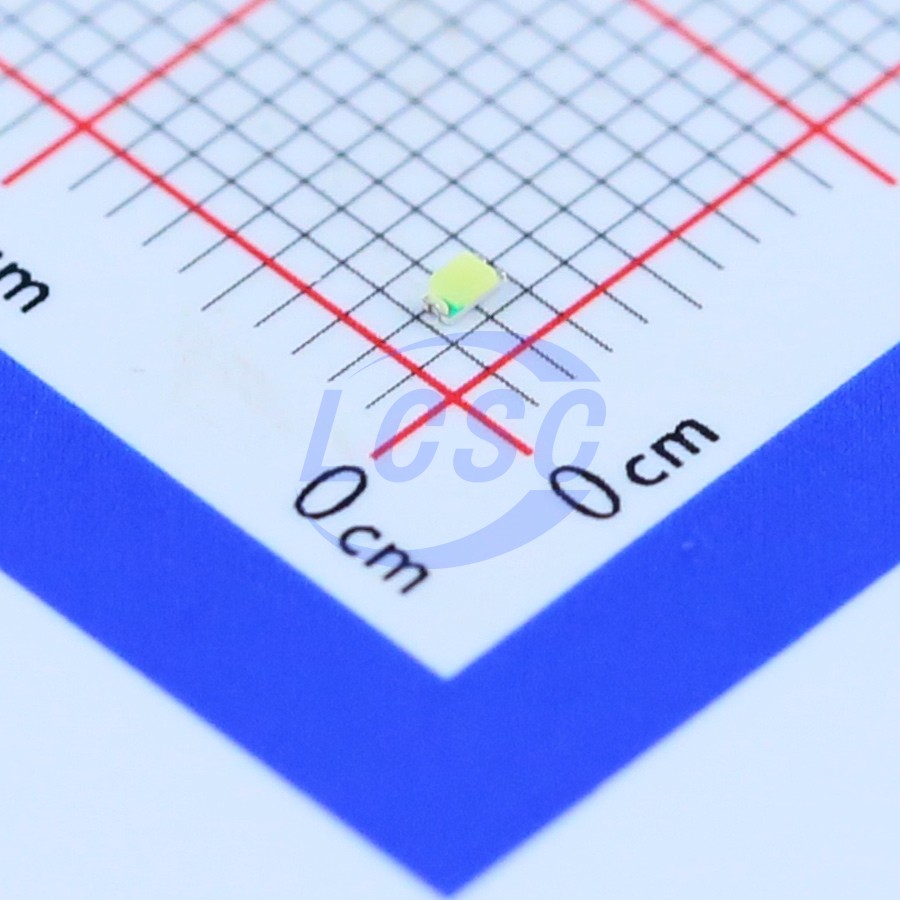

• Description: 0603 high-brightness white LED, 1.6mm x 0.8mm, Vf 2.6V~3.1V, 100mW, 5mA.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: 0603
• Pin count: Unknown
• EasyEDA symbol UUID: 1c82db2269464f6eaca8d3ca849faf57
• EasyEDA footprint UUID: 7048d60f4da3402b8b77a16535f8a124
• EasyEDA device UUID: dc801d7a8953425fb466eee691d69d37
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Basic Part
• JLC note / assembly basis: EasyEDA/JLC verified common IoT basics seed
• Assembly status: jlc_basic
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/KT-0603W/2663.html
• Product URL: https://item.szlcsc.com/datasheet/KT-0603W/2663.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category led, interfaces none captured, package 0603, and EasyEDA footprint UUID 7048d60f4da3402b8b77a16535f8a124.
