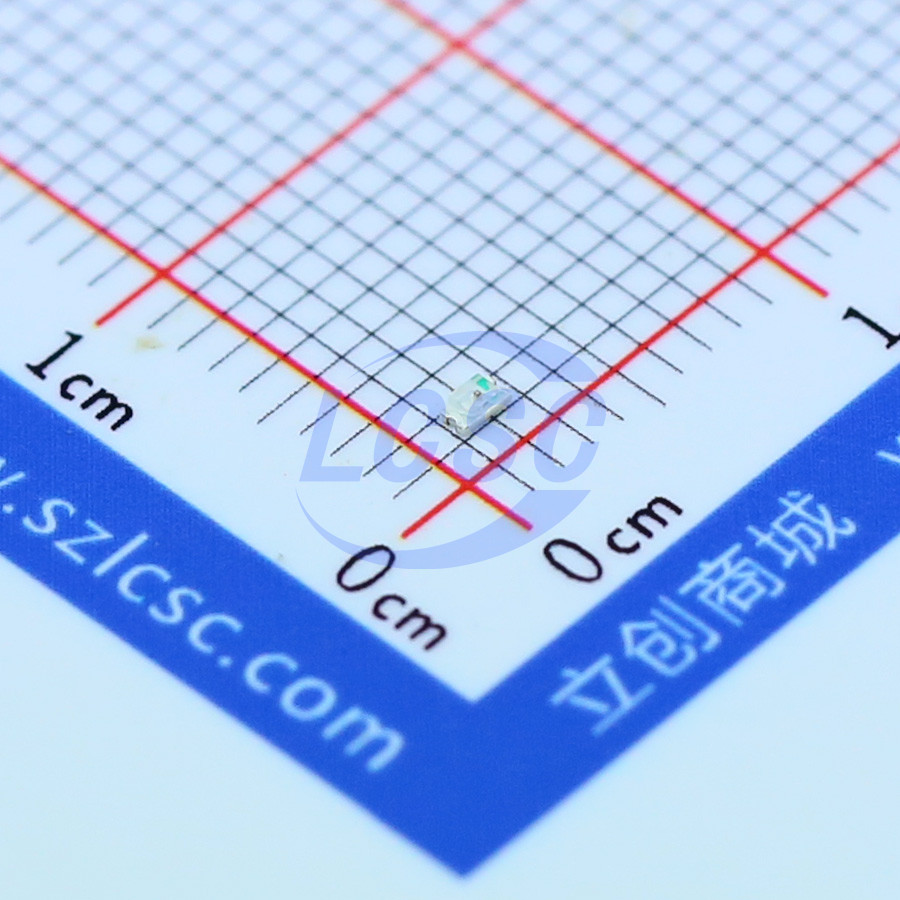

KT-0603Y

Identity

Manufacturer: KENTO
Model / MPN: KT-0603Y
LCSC: C2287
Category: led
Description: 0603 high-brightness yellow LED, Vf 2.4V, 40mW, 584nm~594nm dominant, 596nm peak.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: 0603
Pin count: Unknown
EasyEDA symbol UUID: 32c2aa0b9aa14493a0972b5af836c719
EasyEDA footprint UUID: bd99e3a1960e47858c71f4fe92da16d4
EasyEDA device UUID: a3e6c40842d74517ae0961fec2fc71d9
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common board IO, power entry, and indicator expansion seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/KT-0603Y/2660.html
Product URL: https://item.szlcsc.com/datasheet/KT-0603Y/2660.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category led, interfaces none captured, package 0603, and EasyEDA footprint UUID bd99e3a1960e47858c71f4fe92da16d4.
