KT-0603R

Identity

Manufacturer: KENTO
Model / MPN: KT-0603R
LCSC: C2286
Category: led

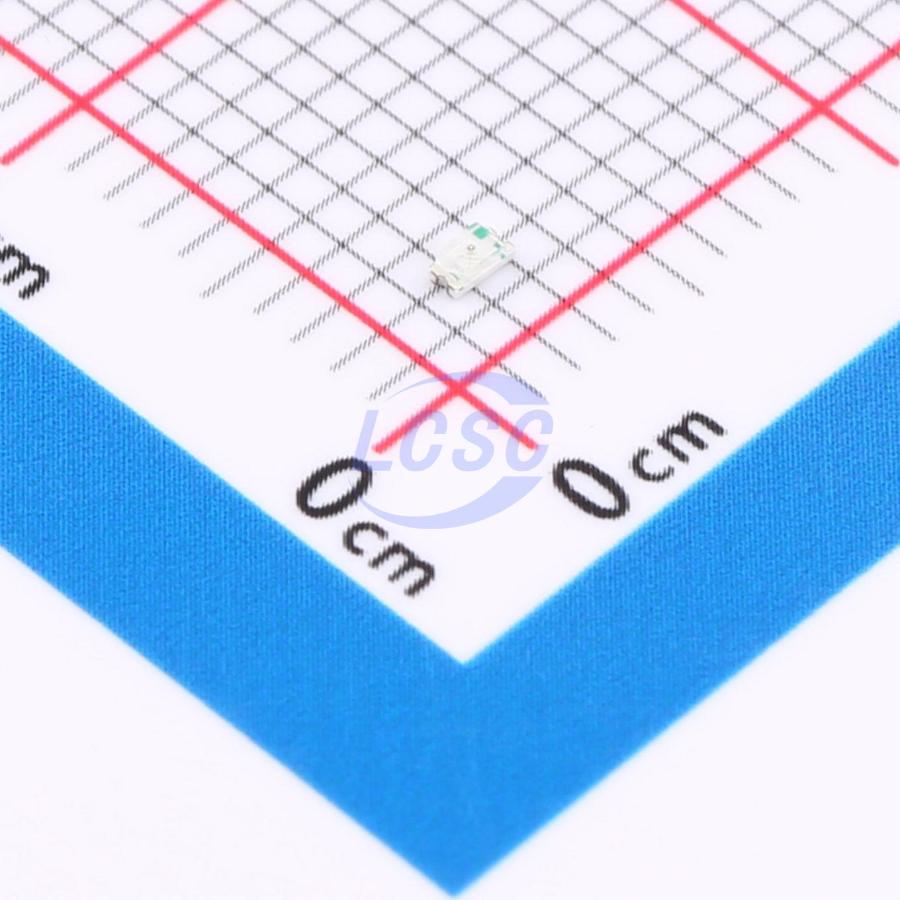

Description: 0603 high-brightness red LED, 1.6mm x 0.8mm, Vf 1.8V~~2.4V, 40mW, 20mA, 615nm~~630nm dominant, 645nm peak.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: 0603
Pin count: Unknown
EasyEDA symbol UUID: 53db9af104004ceca21ea184ecf6d7d3
EasyEDA footprint UUID: 4b5fc4cc8c7140d08659a1cd4c2507a7
EasyEDA device UUID: 015cbd77079d4b0ea5c81b79fefdcea3
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Basic Part
JLC note / assembly basis: EasyEDA/JLC verified common board IO, power entry, and indicator expansion seed
Assembly status: jlc_basic
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/KT-0603R/2659.html
Product URL: https://item.szlcsc.com/datasheet/KT-0603R/2659.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category led, interfaces none captured, package 0603, and EasyEDA footprint UUID 4b5fc4cc8c7140d08659a1cd4c2507a7.
