XY128V-A-5.08-4P
Identity
- Manufacturer: XINLAIYA(新莱亚)
- Model / MPN: XY128V-A-5.08-4P
- LCSC: C22450485
- Category: pluggable-terminal

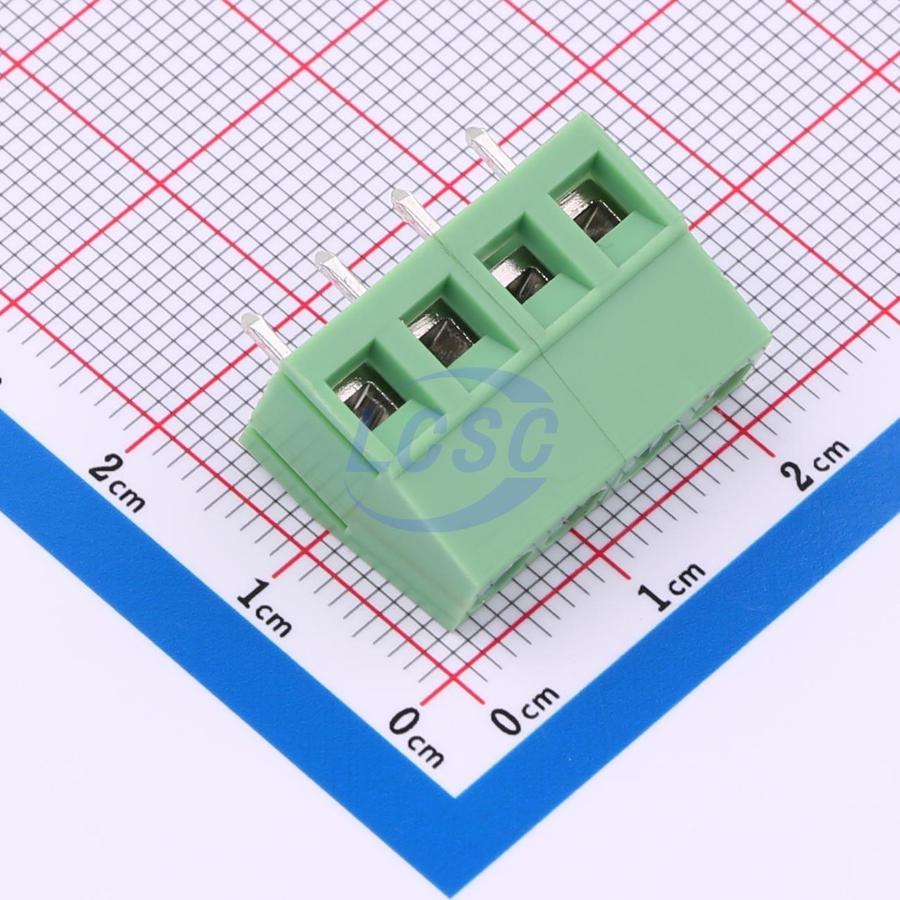

- Description: XY128V-A-5.08-4P 1x4P 5.08mm through-hole green pluggable terminal; 4P, 1 row; M2.5; 15A; 300V; AWG 12~24
- Source: EasyEDA/JLC verified common component seed
- Project designators: Not project-specific
- Project quantity per board: Not project-specific
Capabilities
- Not captured yet.
Package And Footprint
- Package / footprint name: 插件,P=5.08mm
- Pin count: Unknown
- EasyEDA symbol UUID: 11452e59003647ab87d152a13d52662e
- EasyEDA footprint UUID: ceea395d28a74239aa2447e31d39aae2
- EasyEDA device UUID: 668c29315ca44681bf39931740e98bd6
- EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87
Power And Operating Modes
- Active current: Passive part; no quiescent current.
- Sleep / standby current: Passive part; no quiescent current.
- Supply rails: Application-defined.
- Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.
Procurement Classification
- JLC class: Extended Part
- JLC note / assembly basis: EasyEDA/JLC verified common board IO, power entry, and indicator expansion seed
- Assembly status: jlc_extended
- Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
- Live stock: intentionally not stored as durable selection data; refresh externally before ordering.
Datasheet And Links
- Datasheet / product URL: https://item.szlcsc.com/datasheet/XY128V-A-5.08-4P/24114918.html
- Product URL: https://item.szlcsc.com/datasheet/XY128V-A-5.08-4P/24114918.html
- Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.
Selection Notes
- Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
- Avoid when: Not captured yet.
- Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
- Equivalent search hints: match category
pluggable-terminal, interfaces none captured, package插件,P=5.08mm, and EasyEDA footprint UUIDceea395d28a74239aa2447e31d39aae2.
