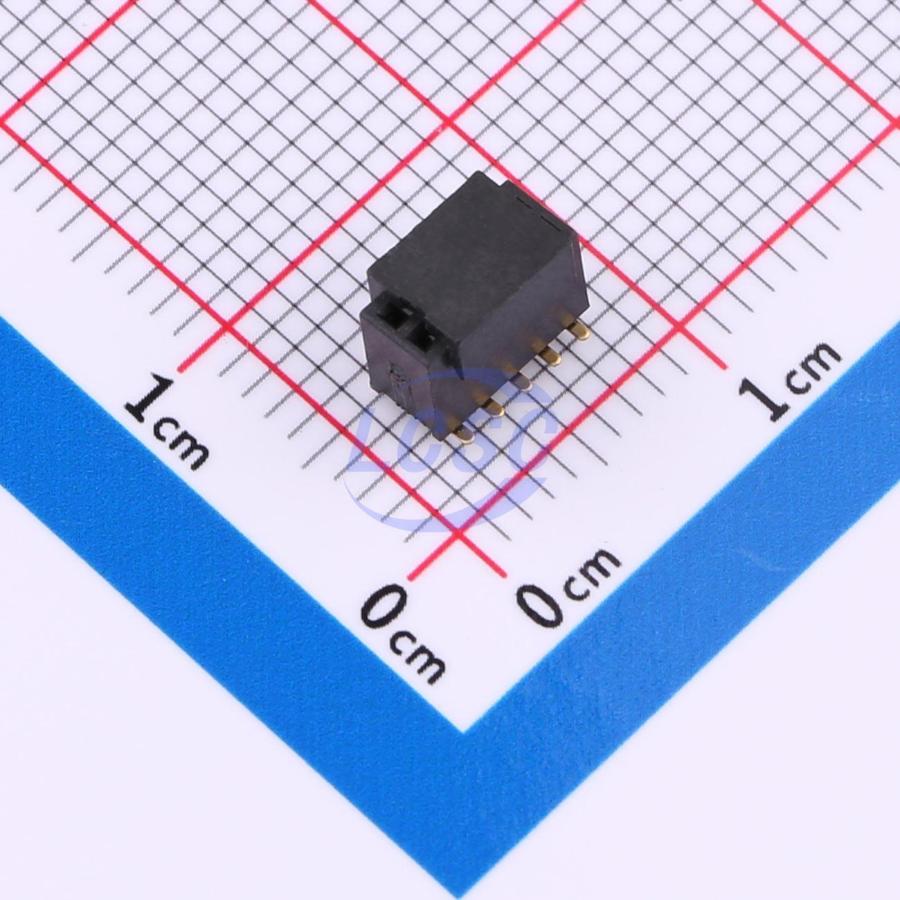

KH-1.27FH-2X5P-H4.3-SMT

Identity

Manufacturer: kinghelm(金航标)
Model / MPN: KH-1.27FH-2X5P-H4.3-SMT
LCSC: C22440865
Category: debug-header
Description: KH-1.27FH-2X5P-H4.3-SMT
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

gpio: interface

Package And Footprint

Package / footprint name: SMD,P=1.27mm
Pin count: Unknown
EasyEDA symbol UUID: 62a641eb5bca4559829004ae15395b04
EasyEDA footprint UUID: e06158dc26b54113b3f9d05d927a4c22
EasyEDA device UUID: 5c1f2f01957a40919d9ee7948d5df1fa
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common debug headers, FPC/mezzanine connectors, field wiring terminals, and fuse seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://atta.szlcsc.com/upload/public/pdf/source/20240528/2FCD6B215BB48CE8DDF561DEBA595768.pdf
Product URL: https://atta.szlcsc.com/upload/public/pdf/source/20240528/2FCD6B215BB48CE8DDF561DEBA595768.pdf
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: SWD, JTAG, UART, programming, boundary-scan, bring-up, and production-test access headers
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category debug-header, interfaces gpio, package SMD,P=1.27mm, and EasyEDA footprint UUID e06158dc26b54113b3f9d05d927a4c22.

Search Keywords

seed:common-debug-mezzanine-field-wiring, source:easyeda-bridge, iot, common-pcb, debug, mezzanine, field-wiring, 1.27mm, 2x5, swd, jtag, smt, socket, debug-header, smd-p-1.27mm, jlc-extended, gpio, jlc_extended, jlc-note:easyeda-jlc-verified-common-debug-headers-fpc-mezzanine-connectors-field-wiring-terminals-and-fuse-seed
