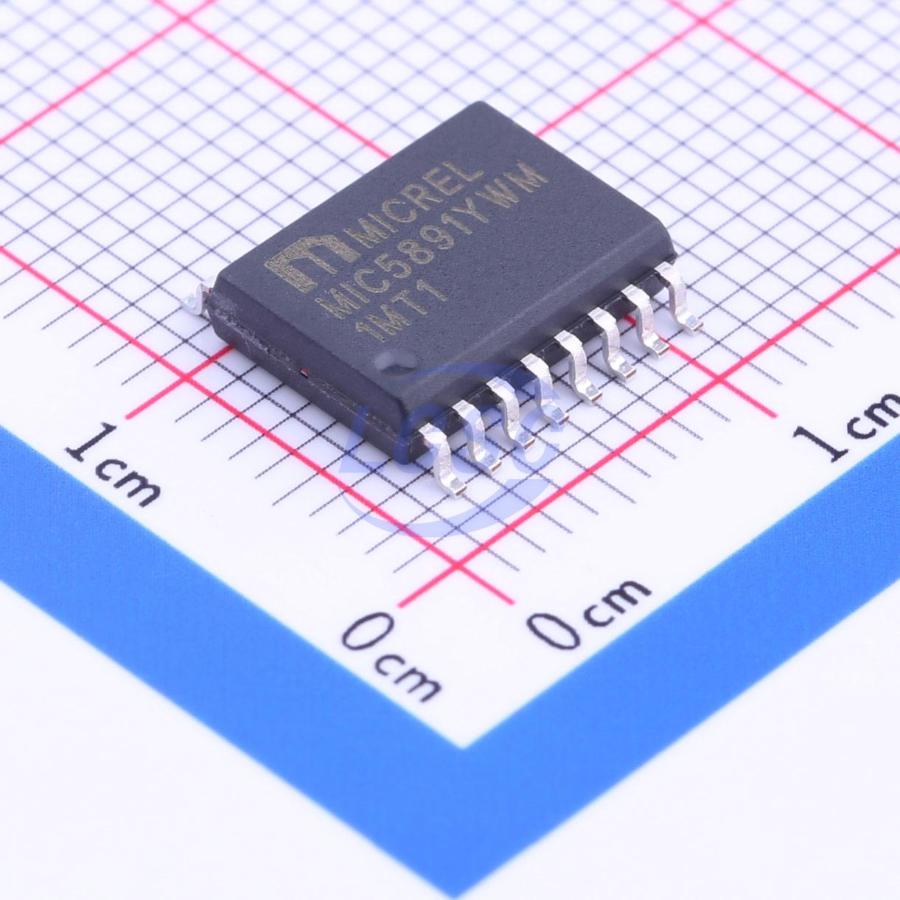

MIC5891YWM

Identity

• Manufacturer: MICROCHIP(美国微芯)
• Model / MPN: MIC5891YWM
• LCSC: C220198
• Category: source-driver
• Description: MIC5891YWM Logic Type:- Output Type: Supply Voltage:4.5V15V Supply Voltage:4.5V15V Number of Channels:8 Series: OperatingTemperature:-55℃+125℃ OperatingTemperature:-55℃+125℃
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• spi: interface
• gpio: interface

Package And Footprint

• Package / footprint name: SOIC-16-300mil
• Pin count: 16
• EasyEDA symbol UUID: 08fcd46e2507402c8694fb55cb8133db
• EasyEDA footprint UUID: a41f1966f94243aa8f26a77e5d7fd955
• EasyEDA device UUID: 36861b8e50a34cdab0b547444d5f618e
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://atta.szlcsc.com/upload/public/pdf/source/20181222/C220198_9CB130415514BDE546016E122E380E45.pdf
• Product URL: https://atta.szlcsc.com/upload/public/pdf/source/20181222/C220198_9CB130415514BDE546016E122E380E45.pdf
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category source-driver, interfaces spi, gpio, package SOIC-16-300mil, and EasyEDA footprint UUID a41f1966f94243aa8f26a77e5d7fd955.
