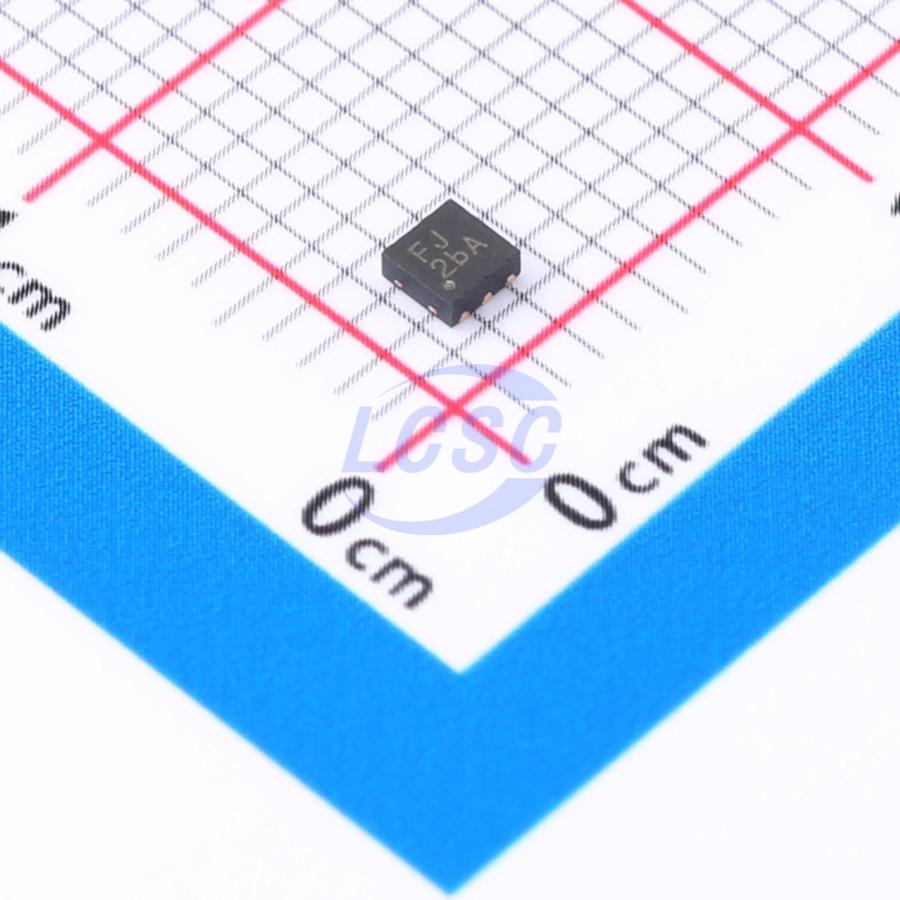

AP22652FDZ-7

Identity

• Manufacturer: DIODES(美台)
• Model / MPN: AP22652FDZ-7
• LCSC: C2158036
• Category: current-limited-load-switch
• Description: Precision adjustable current-limited power switch, High Side Switch, 3V5.5V, 1 channel, Active Low, 2.1A, RDS(on):65mΩ, -40°C+85°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: WDFN2020-6
• Pin count: Unknown
• EasyEDA symbol UUID: 2be1016821a24b46ac9a0f3bbfbed7e7
• EasyEDA footprint UUID: d3d624d7970344beb8e227f8ea637e76
• EasyEDA device UUID: 7e39545c444441dfa5eb729c3e822029
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common power distribution, protection, and sensing seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/AP22652FDZ-7/2250086.html
• Product URL: https://item.szlcsc.com/datasheet/AP22652FDZ-7/2250086.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: USB power ports, sensor-rail protection, field-load power switching, current limiting, and fault-controlled high-side distribution
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category current-limited-load-switch, interfaces gpio, package WDFN2020-6, and EasyEDA footprint UUID d3d624d7970344beb8e227f8ea637e76.
