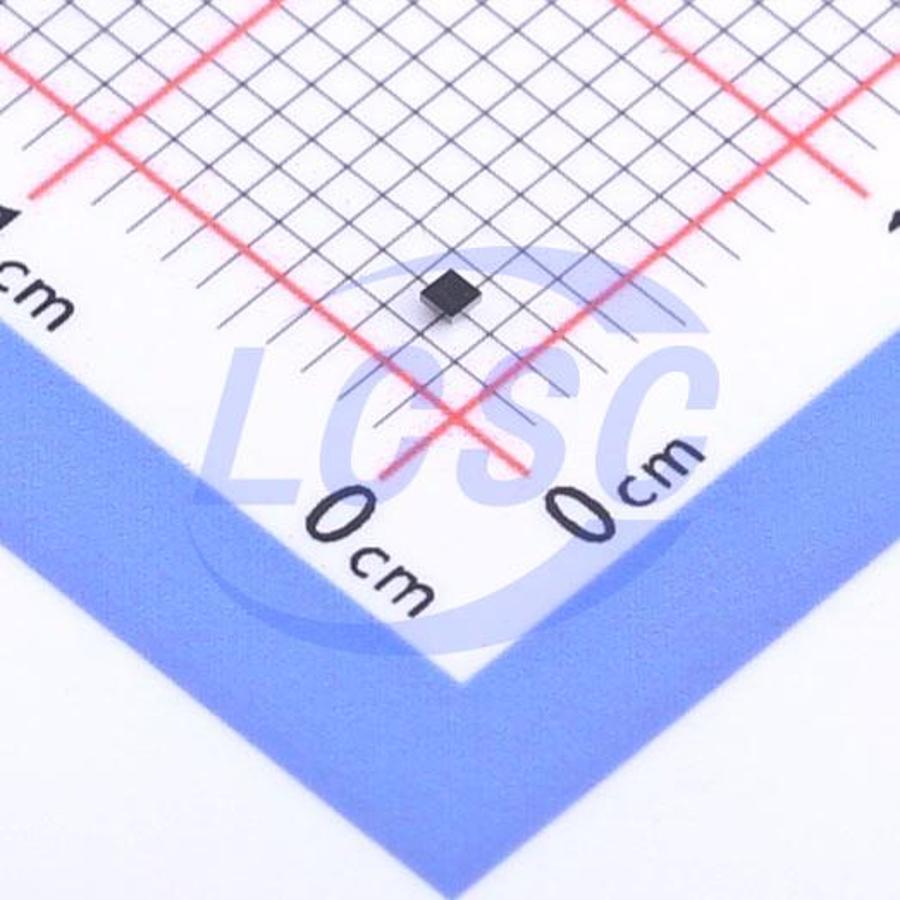

TPS22910AYZVT

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: TPS22910AYZVT
• LCSC: C2150034
• Category: load-switch
• Description: Ultra-small low-on-resistance load switch with controlled turn-on, 1 output, 2A output current, 1.4V5.5V input, 60mΩ, -40°C+85°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: DSBGA-4(0.9x0.9)
• Pin count: Unknown
• EasyEDA symbol UUID: 4fc7ef14cf9945c5acf81206443dc385
• EasyEDA footprint UUID: 223f1fc5b8834241bfe9af8c7779af2b
• EasyEDA device UUID: 67a22c60e7cc422faeaf6d85f71448b0
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common battery management, USB-C power, and power-path seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/tps22910a
• Product URL: https://www.ti.com/cn/lit/gpn/tps22910a
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category load-switch, interfaces gpio, package DSBGA-4(0.9x0.9), and EasyEDA footprint UUID 223f1fc5b8834241bfe9af8c7779af2b.
