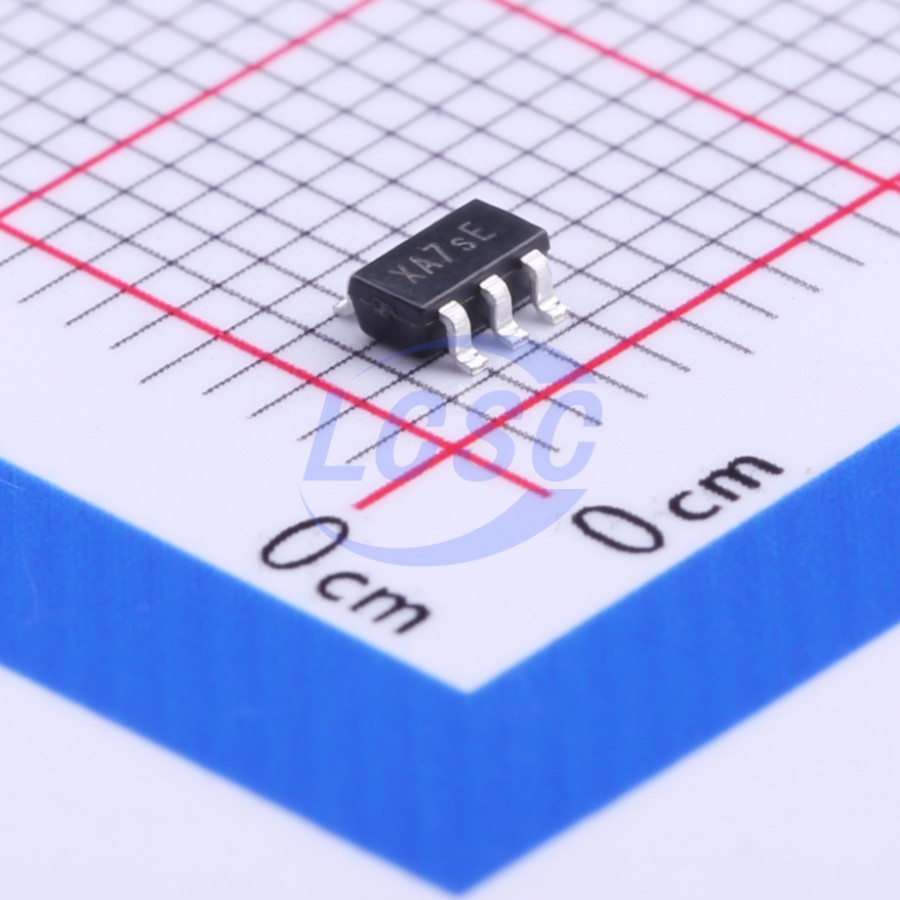

AP22802AW5-7

Identity

• Manufacturer: DIODES(美台)
• Model / MPN: AP22802AW5-7
• LCSC: C211404
• Category: load-switch
• Description: Single-channel power-distribution load switch, High Side Switch, 2.7V5.5V, Active High, 2A, RDS(on):50mΩ, -40°C+85°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: SOT-25-5
• Pin count: 5
• EasyEDA symbol UUID: a94430805b08459e8f26a2844bceb051
• EasyEDA footprint UUID: 0532eb80234e48999a54051e9e5382dc
• EasyEDA device UUID: 7dc792491ea543fc81e5e52d1e21033a
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common battery management, USB-C power, and power-path seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/AP22802AW5-7/212338.html
• Product URL: https://item.szlcsc.com/datasheet/AP22802AW5-7/212338.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category load-switch, interfaces gpio, package SOT-25-5, and EasyEDA footprint UUID 0532eb80234e48999a54051e9e5382dc.
