SY6288C3AAC

Identity

• Manufacturer: Silergy(矽力杰)
• Model / MPN: SY6288C3AAC
• LCSC: C207612
• Category: current-limited-load-switch
• Description: Low-loss power distribution high-side switch, 1 channel, active high, 1.5A max, 2.5V5.5V, 70mΩ RDS(on), -40°C+125°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

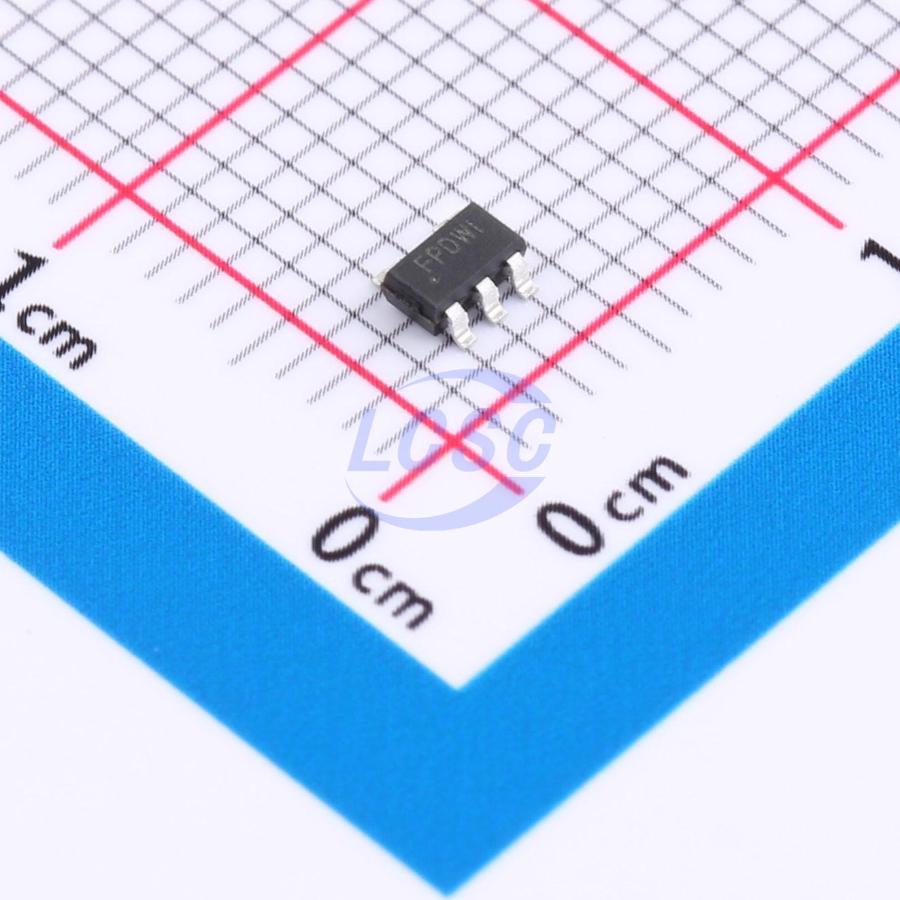

• Package / footprint name: SOT-23-5
• Pin count: 5
• EasyEDA symbol UUID: e0726426ca864d01ae1cb51bc0953fee
• EasyEDA footprint UUID: 42e6c81692364c6aa20fe0e379313c99
• EasyEDA device UUID: 4e36810ea8e849a6bf17e6599a349e2e
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common power distribution, protection, and sensing seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/SY6288C3AAC/208828.html
• Product URL: https://item.szlcsc.com/datasheet/SY6288C3AAC/208828.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: USB power ports, sensor-rail protection, field-load power switching, current limiting, and fault-controlled high-side distribution
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category current-limited-load-switch, interfaces gpio, package SOT-23-5, and EasyEDA footprint UUID 42e6c81692364c6aa20fe0e379313c99.
