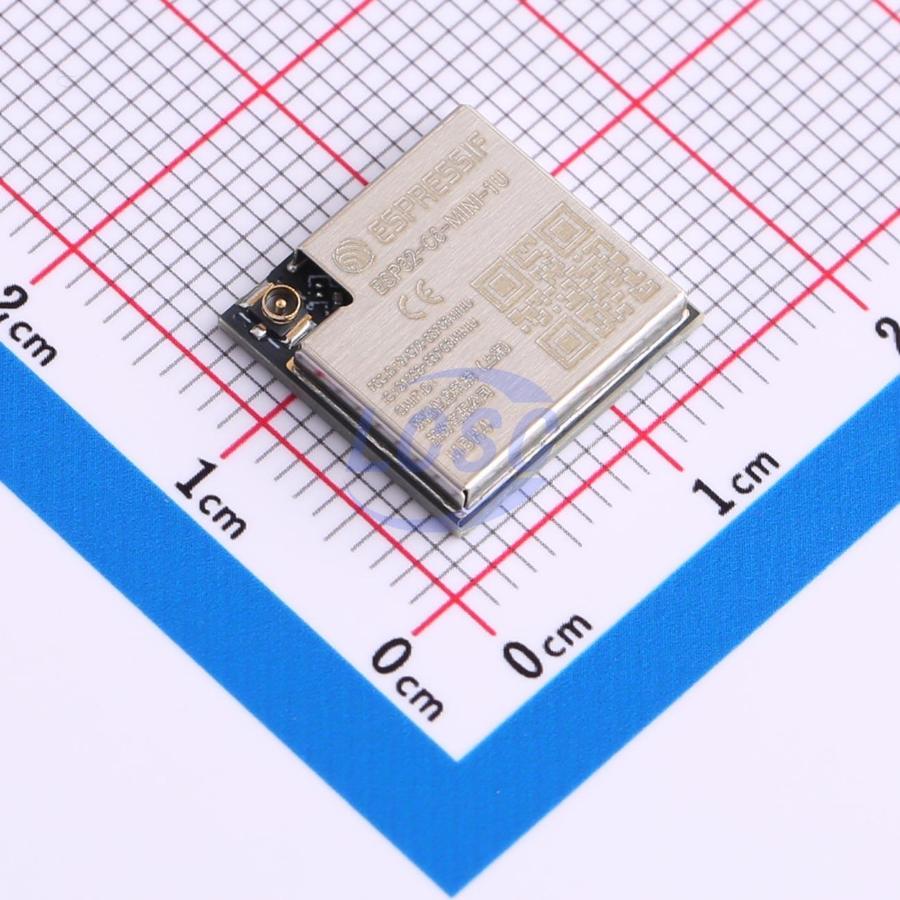

ESP32-C6-MINI-1U-H4

Identity

Manufacturer: ESPRESSIF(乐鑫)
Model / MPN: ESP32-C6-MINI-1U-H4
LCSC: C20627095
Category: wireless-module
Description: Firmware-free 2.4 GHz Wi-Fi6, Bluetooth 5 (LE), Zigbee and Thread module, ESP32-C6FH4, 3V~3.6V, I2C/GPIO/UART/SPI/SDIO/USB, 20.5dBm
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

uart: interface
spi: interface
i2c: interface
usb: interface
wifi: interface
bluetooth: interface
zigbee: interface
thread: interface

Package And Footprint

Package / footprint name: SMD,13.2x12.5mm
Pin count: Unknown
EasyEDA symbol UUID: e9d6575211fa4282b42d7c9c4989299b
EasyEDA footprint UUID: 644fb9dcabb64de88536d19c282aab06
EasyEDA device UUID: 50d4aee9fa62411aba11fb20ea7c8179
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: EasyEDA property: 73mA.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 3V~3.6V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common MCU and wireless module seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/ESP32-C6-MINI-1U-H4/22039339.html
Product URL: https://item.szlcsc.com/datasheet/ESP32-C6-MINI-1U-H4/22039339.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: connected prototypes where pre-certified RF modules reduce layout risk
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category wireless-module, interfaces uart, spi, i2c, usb, wifi, bluetooth, zigbee, thread, package SMD,13.2x12.5mm, and EasyEDA footprint UUID 644fb9dcabb64de88536d19c282aab06.
