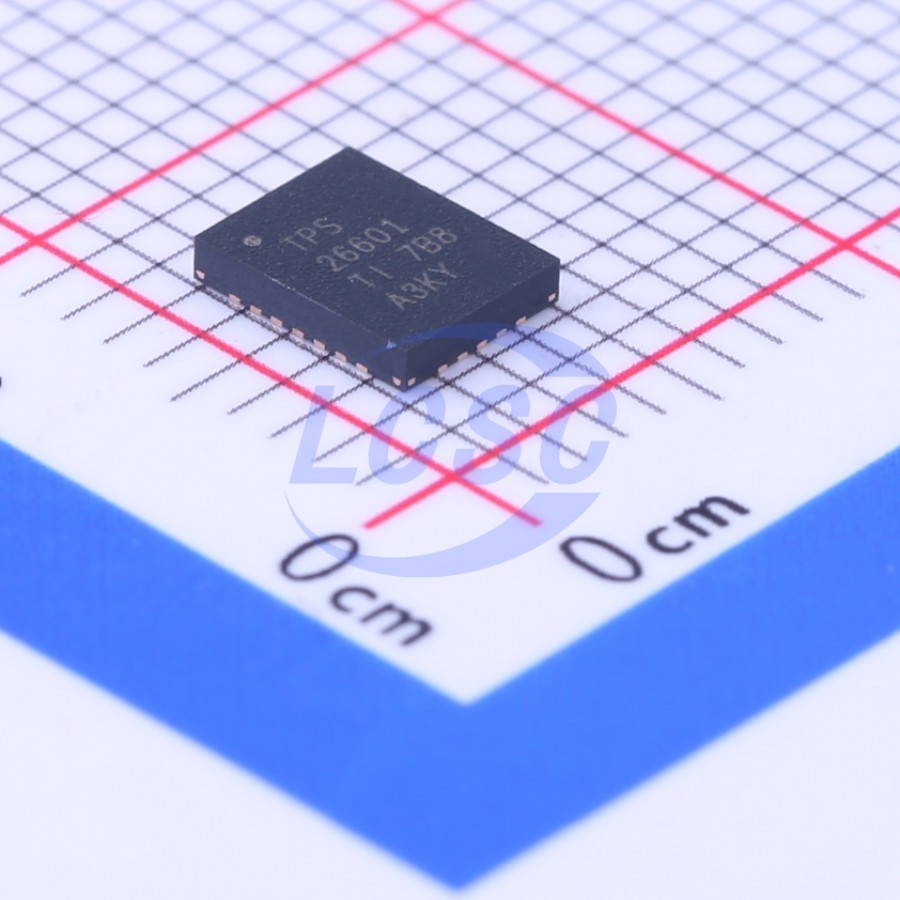

TPS26601RHFT

Identity

Manufacturer: TI(德州仪器)
Model / MPN: TPS26601RHFT
LCSC: C202198
Category: efuse
Description: TPS26601RHFT
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

gpio: interface

Package And Footprint

Package / footprint name: VQFN-24-EP(4x5)
Pin count: 24
EasyEDA symbol UUID: f1da0ed6fa74483c948acd2dca76558f
EasyEDA footprint UUID: 07da38ca591247f98c163cbf8af732a6
EasyEDA device UUID: 72ad4e2a7f5444b58336df8aef966749
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common power distribution, protection, and sensing seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://www.ti.com/cn/lit/gpn/tps2660
Product URL: https://www.ti.com/cn/lit/gpn/tps2660
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: protected power inputs, hot-swap rails, surge-tolerant field power, configurable current limits, and fault reporting
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category efuse, interfaces gpio, package VQFN-24-EP(4x5), and EasyEDA footprint UUID 07da38ca591247f98c163cbf8af732a6.
