HX TF-CARD H1.8

Identity

Manufacturer: hanxia(韩下)
Model / MPN: HX TF-CARD H1.8
LCSC: C19189036
Category: memory-card-connector

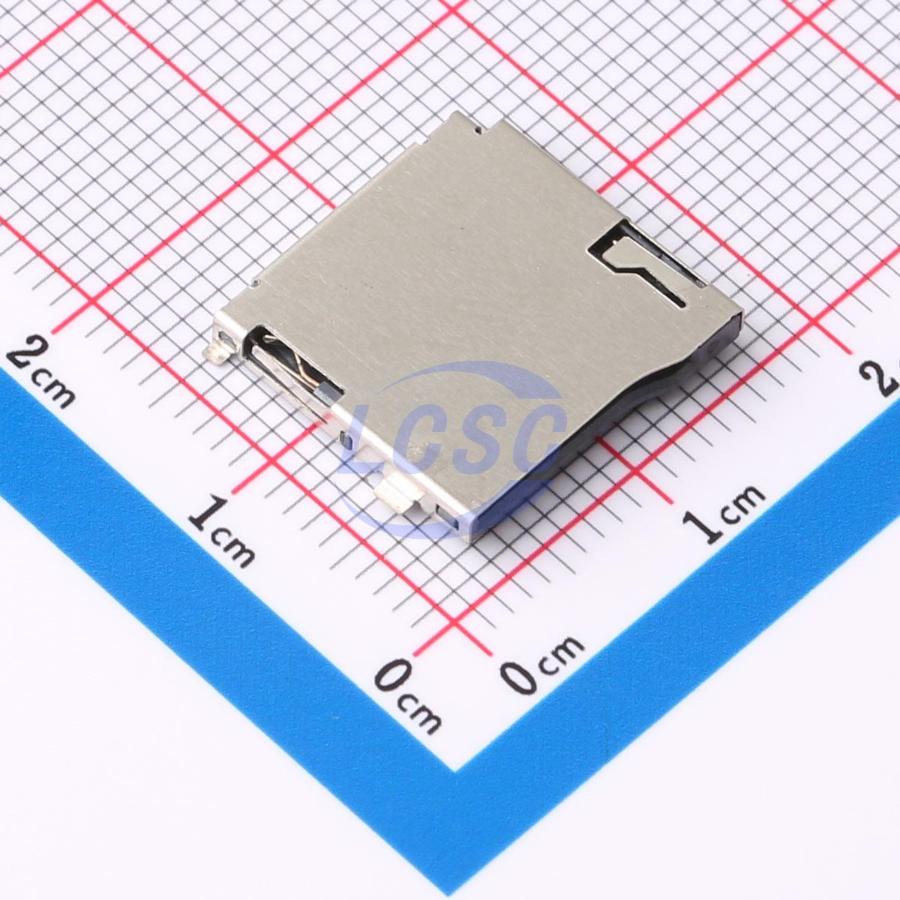

Description: HX TF-CARD H1.8 push-push MicroSD Card (TF Card) connector and ejector; card-detect pins; height 1.8mm; -20°C~+70°C
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

spi: interface
sdio: interface

Package And Footprint

Package / footprint name: SMD
Pin count: Unknown
EasyEDA symbol UUID: 510bbe3a06794dbaa25cbf4f8245b8e5
EasyEDA footprint UUID: 6ba42b45cf5f47a282efc342b4a893f2
EasyEDA device UUID: db329c0bc0ad44a384de7b185c611a15
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common memory, timing, storage, and security seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/HX%2520TF-CARD%2520H1.8/20413991.html
Product URL: https://item.szlcsc.com/datasheet/HX%2520TF-CARD%2520H1.8/20413991.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: removable logging, field data export, firmware images, SDIO storage, and SPI-mode microSD/SD card designs
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category memory-card-connector, interfaces spi, sdio, package SMD, and EasyEDA footprint UUID 6ba42b45cf5f47a282efc342b4a893f2.
