UCC27511DBVR

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: UCC27511DBVR
• LCSC: C191027
• Category: gate-driver
• Description: Single-channel high-speed low-side gate driver; 4.5V~18V; IGBT/MOSFET; IOL 8A, IOH 4A; rise 8ns, fall 7ns; tpLH 13ns
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface
• pwm: interface

Package And Footprint

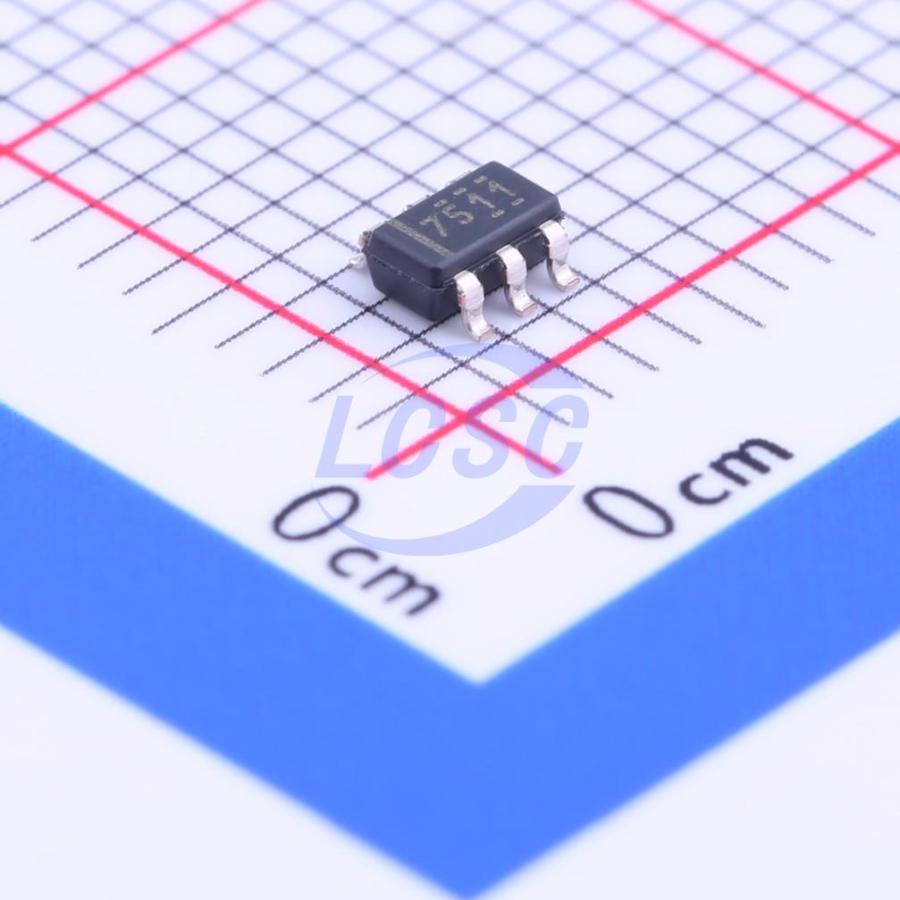

• Package / footprint name: SOT-23-6
• Pin count: 6
• EasyEDA symbol UUID: 84535d0ac41b4837b083bda32237d59e
• EasyEDA footprint UUID: 136db59d42184a44ac8441e35d752b13
• EasyEDA device UUID: 581c6db512494ba6bffab9168f00daa3
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 4.5V~18V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/ucc27511
• Product URL: https://www.ti.com/cn/lit/gpn/ucc27511
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category gate-driver, interfaces gpio, pwm, package SOT-23-6, and EasyEDA footprint UUID 136db59d42184a44ac8441e35d752b13.

Search Keywords

seed:common-drivers-isolation-actuation, source:easyeda-bridge, iot, common-pcb, ucc27511, single, mosfet-driver, 4a-source, 8a-sink, low-side, gate-driver, sot-23-6, jlc-extended, gpio, pwm, jlc_extended, jlc-note:easyeda-jlc-verified-common-drivers-isolation-and-actuation-seed
