HC-PBB40C-20DS-0.4V-4.0-02

Identity

Manufacturer: HCTL(华灿天禄)
Model / MPN: HC-PBB40C-20DS-0.4V-4.0-02
LCSC: C19089314
Category: board-to-board-connector

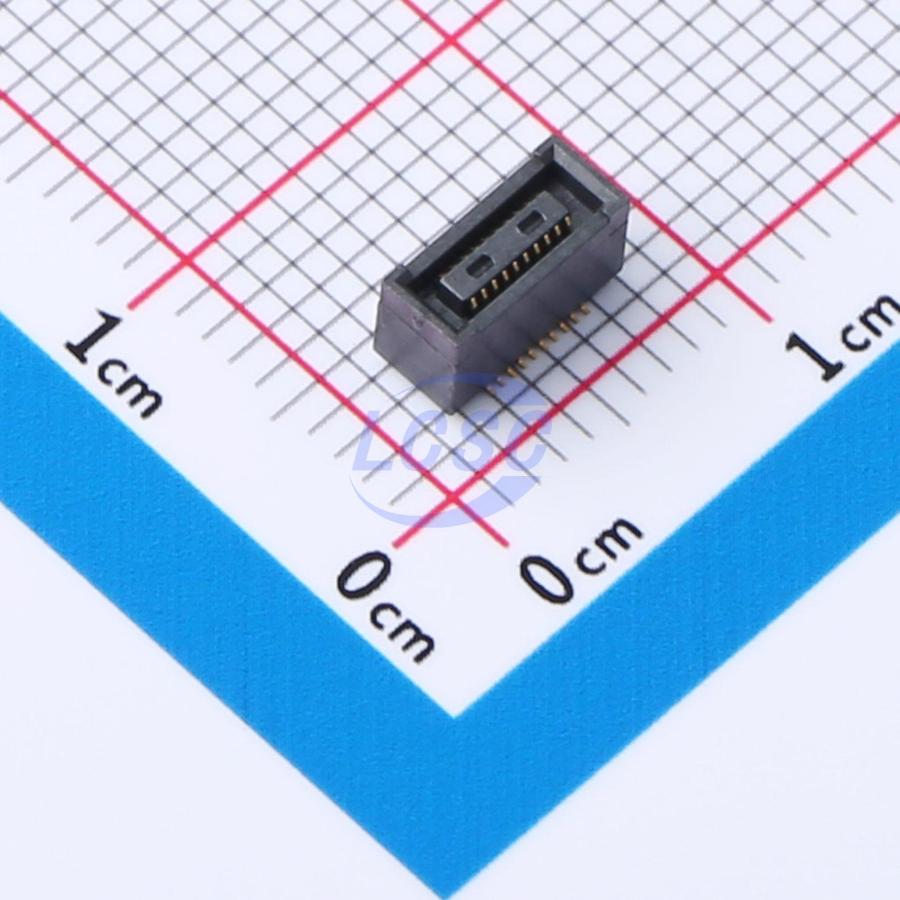

Description: 20P 0.4mm vertical SMT board-to-board connector, Slot Type Butting, 2 rows, 300mA, system fit height 4mm, gold plating
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

mezzanine: interface

Package And Footprint

Package / footprint name: SMD,P=0.4mm
Pin count: Unknown
EasyEDA symbol UUID: 03ce38238c8849cc9142a1e5b642b8b6
EasyEDA footprint UUID: ad4391adbe424c048434b0aa8f608043
EasyEDA device UUID: d1c82b59911a47a78c085603a41a384b
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common debug headers, FPC/mezzanine connectors, field wiring terminals, and fuse seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/HC-PBB40C-20DS-0.4V-4.0-02/20296064.html
Product URL: https://item.szlcsc.com/datasheet/HC-PBB40C-20DS-0.4V-4.0-02/20296064.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: mezzanine stacking, daughtercards, radio/modem modules, display boards, and compact board-to-board expansion
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category board-to-board-connector, interfaces mezzanine, package SMD,P=0.4mm, and EasyEDA footprint UUID ad4391adbe424c048434b0aa8f608043.
