HC-PBB40C-20DS-0.4V-3.0-02

Identity

• Manufacturer: HCTL(华灿天禄)
• Model / MPN: HC-PBB40C-20DS-0.4V-3.0-02
• LCSC: C19089284
• Category: board-to-board-connector

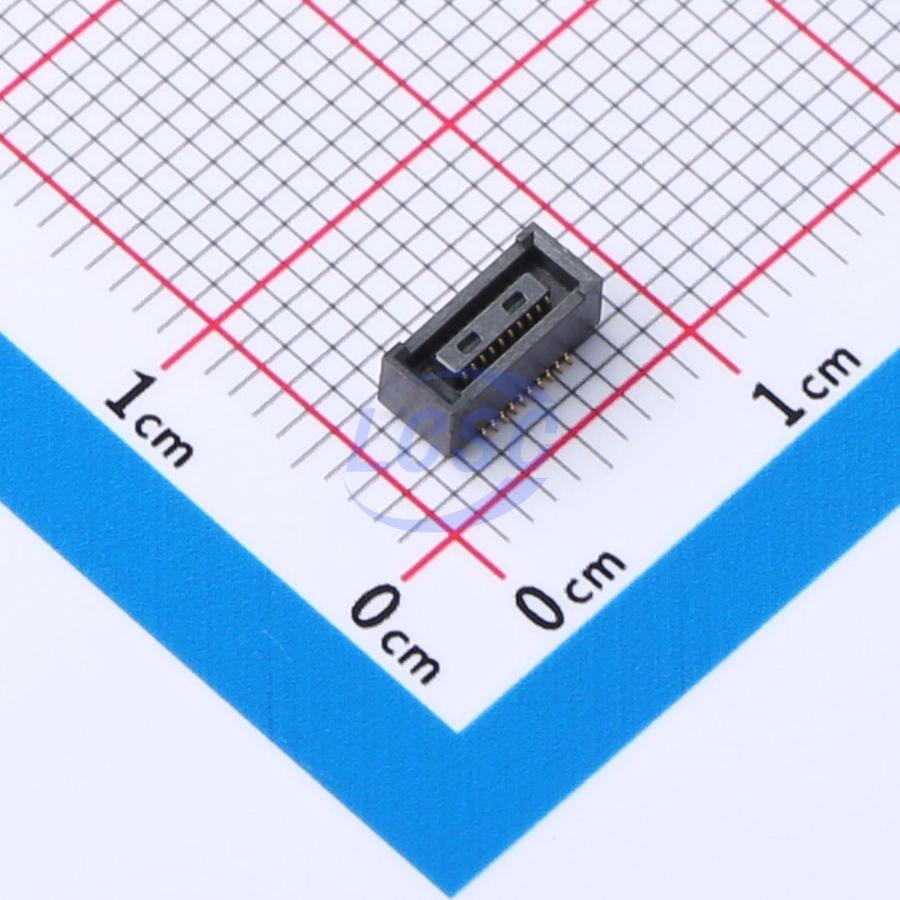

• Description: 20P 0.4mm vertical SMT board-to-board connector, Slot Type Butting, 2 rows, 300mA, system fit height 3mm, gold plating
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• mezzanine: interface

Package And Footprint

• Package / footprint name: SMD,P=0.4mm
• Pin count: Unknown
• EasyEDA symbol UUID: 4113ad1186464d8d9de4ab14c9735736
• EasyEDA footprint UUID: ad4391adbe424c048434b0aa8f608043
• EasyEDA device UUID: 20d7f251f0444ab9ba61e5ec90fa5c4f
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common debug headers, FPC/mezzanine connectors, field wiring terminals, and fuse seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/HC-PBB40C-20DS-0.4V-3.0-02/20296034.html
• Product URL: https://item.szlcsc.com/datasheet/HC-PBB40C-20DS-0.4V-3.0-02/20296034.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: mezzanine stacking, daughtercards, radio/modem modules, display boards, and compact board-to-board expansion
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category board-to-board-connector, interfaces mezzanine, package SMD,P=0.4mm, and EasyEDA footprint UUID ad4391adbe424c048434b0aa8f608043.
