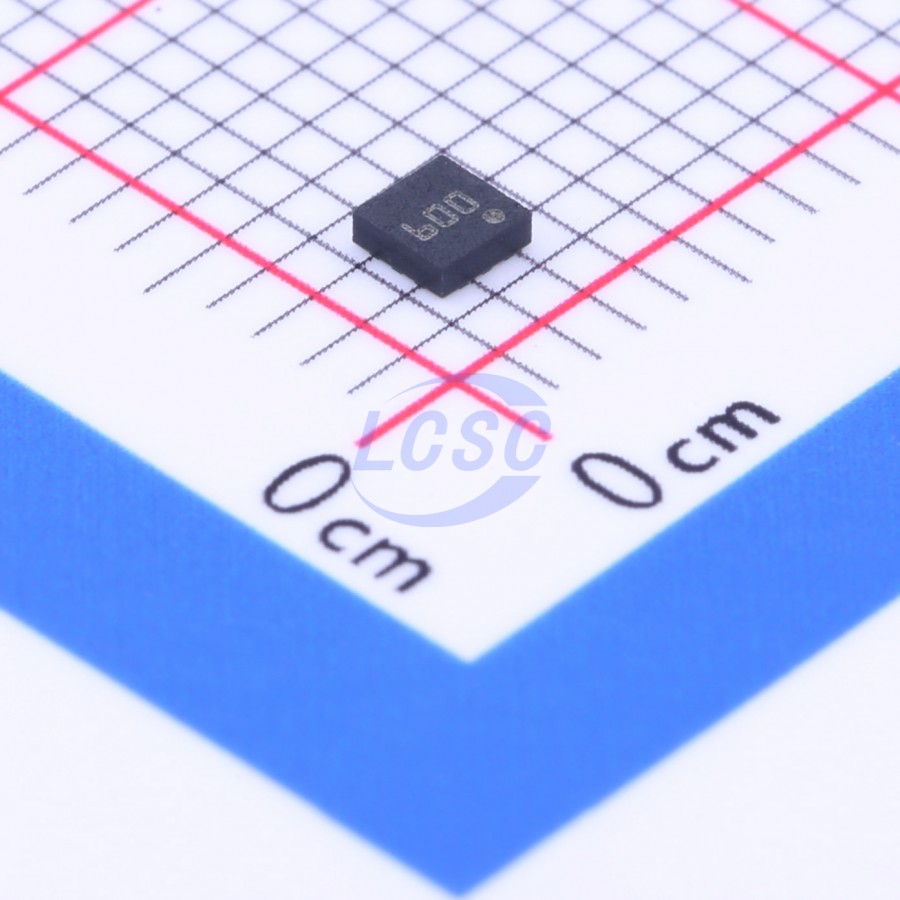

BMA456

Identity

• Manufacturer: Bosch(博世)
• Model / MPN: BMA456
• LCSC: C189518
• Category: accelerometer
• Description: BMA456 1.62V3.6V Voltage - Supply:1.62V3.6V Voltage - Supply:1.62V3.6V Operating Temperature:-40℃+85℃ Operating Temperature:-40℃~+85℃
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface
• spi: interface

Package And Footprint

• Package / footprint name: LGA-12(2x2)
• Pin count: 12
• EasyEDA symbol UUID: a1d0a768b36143388b63de1594223cf1
• EasyEDA footprint UUID: 07ded5f3f050434e99f4c9b3688702d4
• EasyEDA device UUID: 3b8d51f19df4486bbc1356a05b74559b
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 1.62V~3.6V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common environment, motion, light, proximity, and temperature sensor seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/BMA456/200996.html
• Product URL: https://item.szlcsc.com/datasheet/BMA456/200996.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: motion wake, tilt/orientation, vibration monitoring, impact detection, tap detection, and low-power activity sensing
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category accelerometer, interfaces i2c, spi, package LGA-12(2x2), and EasyEDA footprint UUID 07ded5f3f050434e99f4c9b3688702d4.
