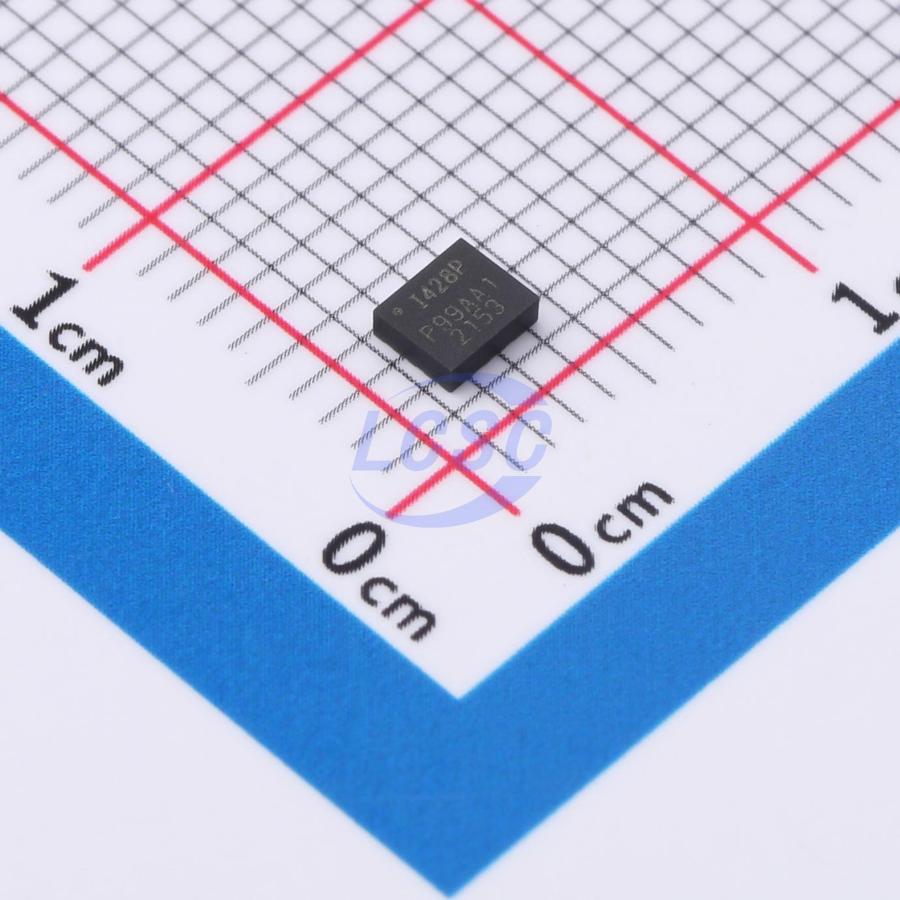

ICM-42688-P

Identity

• Manufacturer: TDK InvenSense(应美盛)
• Model / MPN: ICM-42688-P
• LCSC: C1850418
• Category: imu
• Description: High-accuracy 6-axis MEMS motion tracker, 1.71V~3.6V, I2C;SPI, accelerometer X,Y,Z ±16g, gyroscope X,Y,Z ±2000dps, IMU.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface
• spi: interface

Package And Footprint

• Package / footprint name: LGA-14(2.5x3)
• Pin count: 14
• EasyEDA symbol UUID: 65404844c7a845ad98838c9a3ab66818
• EasyEDA footprint UUID: b3ab650c1f5544258fc70ffcd489f790
• EasyEDA device UUID: 9c90c0323548437396a685b3b34c6dd6
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: EasyEDA property: 7.5uA.
• Supply rails: EasyEDA property: 1.71V~3.6V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common IoT sensors, storage, and communications seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/ICM-42688-P/1941231.html
• Product URL: https://item.szlcsc.com/datasheet/ICM-42688-P/1941231.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category imu, interfaces i2c, spi, package LGA-14(2.5x3), and EasyEDA footprint UUID b3ab650c1f5544258fc70ffcd489f790.
