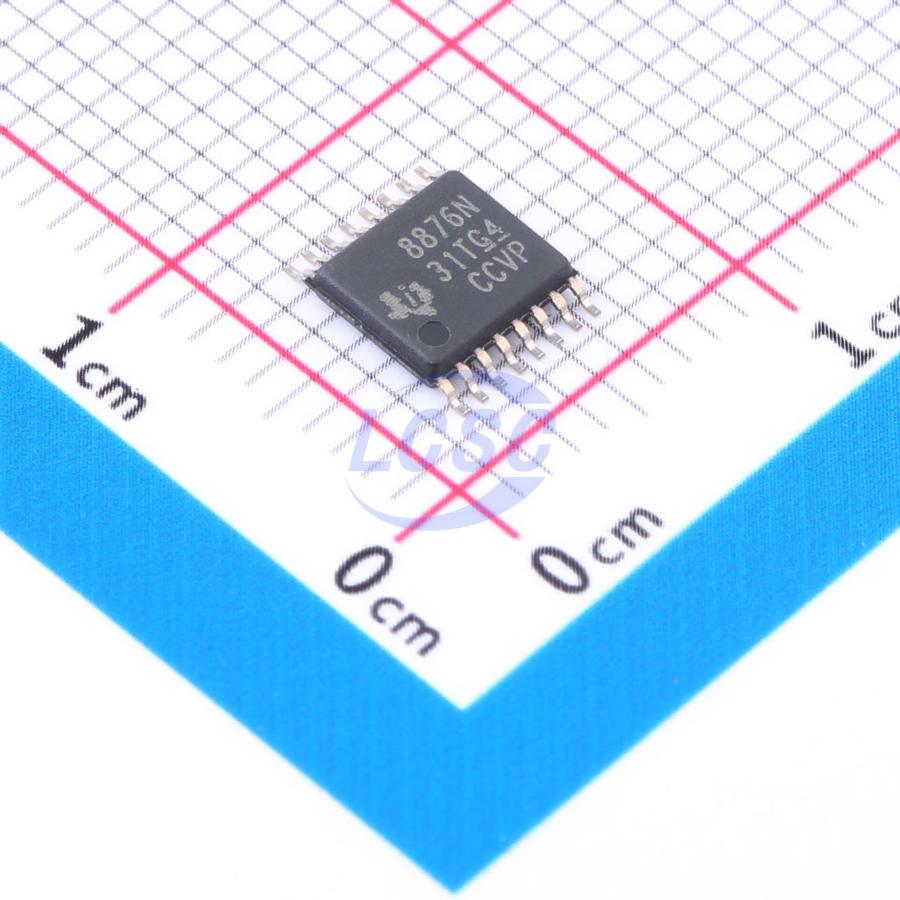

DRV8876NPWPR

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: DRV8876NPWPR
• LCSC: C1849483
• Category: motor-driver
• Description: 3.5A brushed DC motor driver, 5.5V, 1 H-bridge, 4.5V37V supply, 3.5A peak, 350mΩ RDS(on), 750nA Iq, -40°C+125°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface
• pwm: interface

Package And Footprint

• Package / footprint name: HTSSOP-16-EP
• Pin count: Unknown
• EasyEDA symbol UUID: 87adaa0b4e1a4529b9036c4bbebb4556
• EasyEDA footprint UUID: 3fe296472ecd4d2c963d742e1658eca5
• EasyEDA device UUID: 56691f1e64024ce1908c69a88052a6e9
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 4.5V~37V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/drv8876n
• Product URL: https://www.ti.com/cn/lit/gpn/drv8876n
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category motor-driver, interfaces gpio, pwm, package HTSSOP-16-EP, and EasyEDA footprint UUID 3fe296472ecd4d2c963d742e1658eca5.
