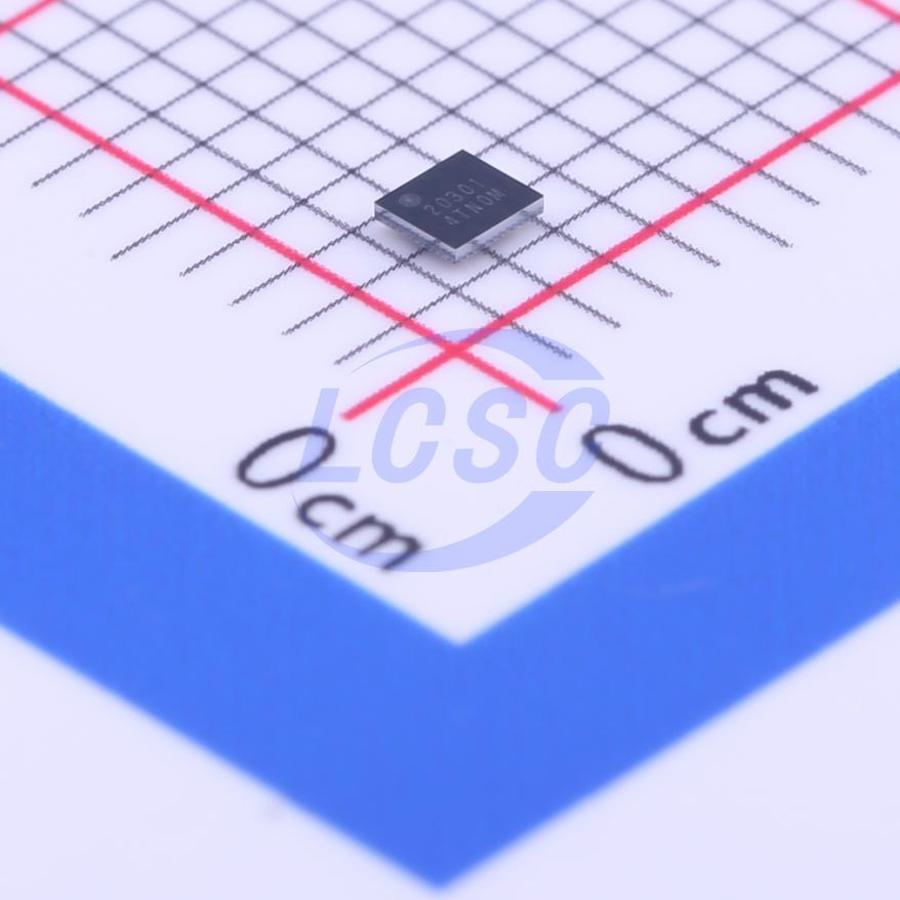

LC709203FXE-01MH

Identity

• Manufacturer: onsemi(安森美)
• Model / MPN: LC709203FXE-01MH
• LCSC: C184366
• Category: fuel-gauge
• Description: LC709203FXE-01MH single-cell Li-ion/polymer battery fuel gauge; I2C; 2.5V4.5V; monitoring IC; 1 lithium cell; -40°C+85°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

• Package / footprint name: WLCSP-9(1.6x1.8)
• Pin count: Unknown
• EasyEDA symbol UUID: 27b2758ff770408090b11913878dcdbb
• EasyEDA footprint UUID: fd68dea07001464a98ba725060496d7d
• EasyEDA device UUID: 2bdc756323264c4cbf1305a2bcf61318
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 2.5V~4.5V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common battery management, USB-C power, and power-path seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/LC709203FXE-01MH/195770.html
• Product URL: https://item.szlcsc.com/datasheet/LC709203FXE-01MH/195770.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category fuel-gauge, interfaces i2c, package WLCSP-9(1.6x1.8), and EasyEDA footprint UUID fd68dea07001464a98ba725060496d7d.
