IP5306

Identity

Manufacturer: INJOINIC(英集芯)
Model / MPN: IP5306
LCSC: C181692
Category: power-bank-soc
Description: Power-bank SoC with integrated 2.1A charger and 2.1A discharge, 4.65V~5.5V, I2C, 4.2V saturation, 3V end-off, 1 Lithium Battery cell
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

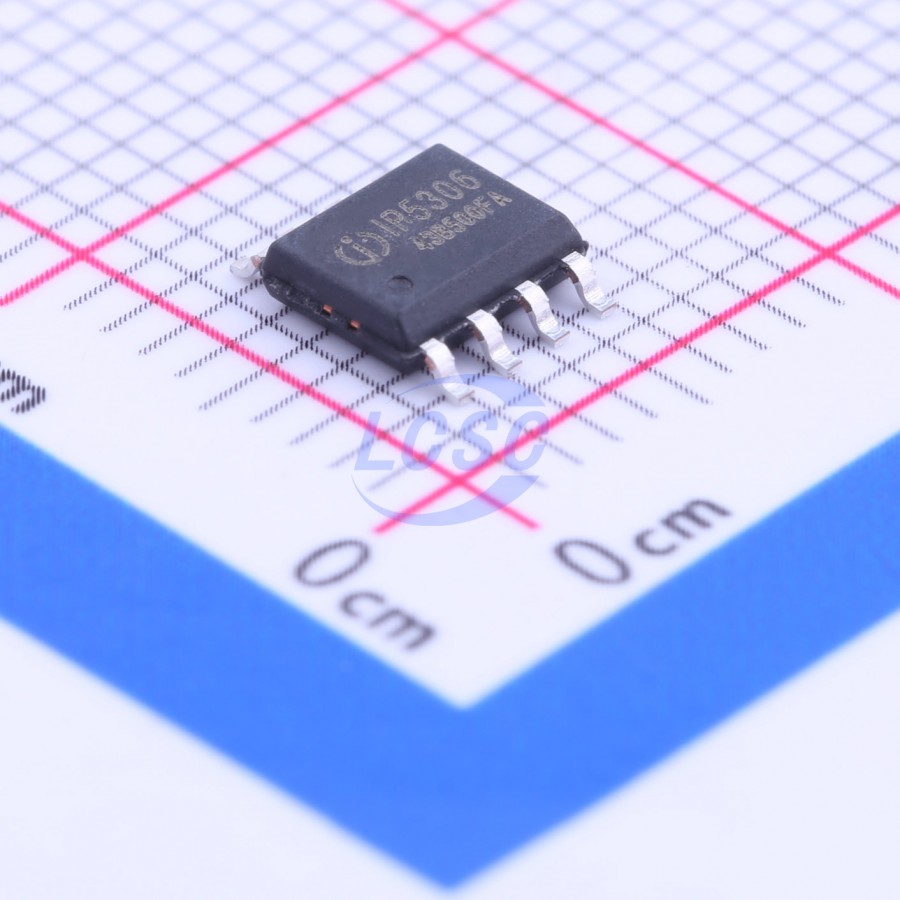

Package / footprint name: ESOP-8
Pin count: Unknown
EasyEDA symbol UUID: b06db79d3a2e4c018dfdebe268049879
EasyEDA footprint UUID: 1ba21eaaf61e4b98a50eb4bdd24d4ce1
EasyEDA device UUID: 1c875ecadffe48e8a7aa0d575af474ad
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 4.65V~5.5V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common battery management, USB-C power, and power-path seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/IP5306/193089.html
Product URL: https://item.szlcsc.com/datasheet/IP5306/193089.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category power-bank-soc, interfaces none captured, package ESOP-8, and EasyEDA footprint UUID 1ba21eaaf61e4b98a50eb4bdd24d4ce1.
