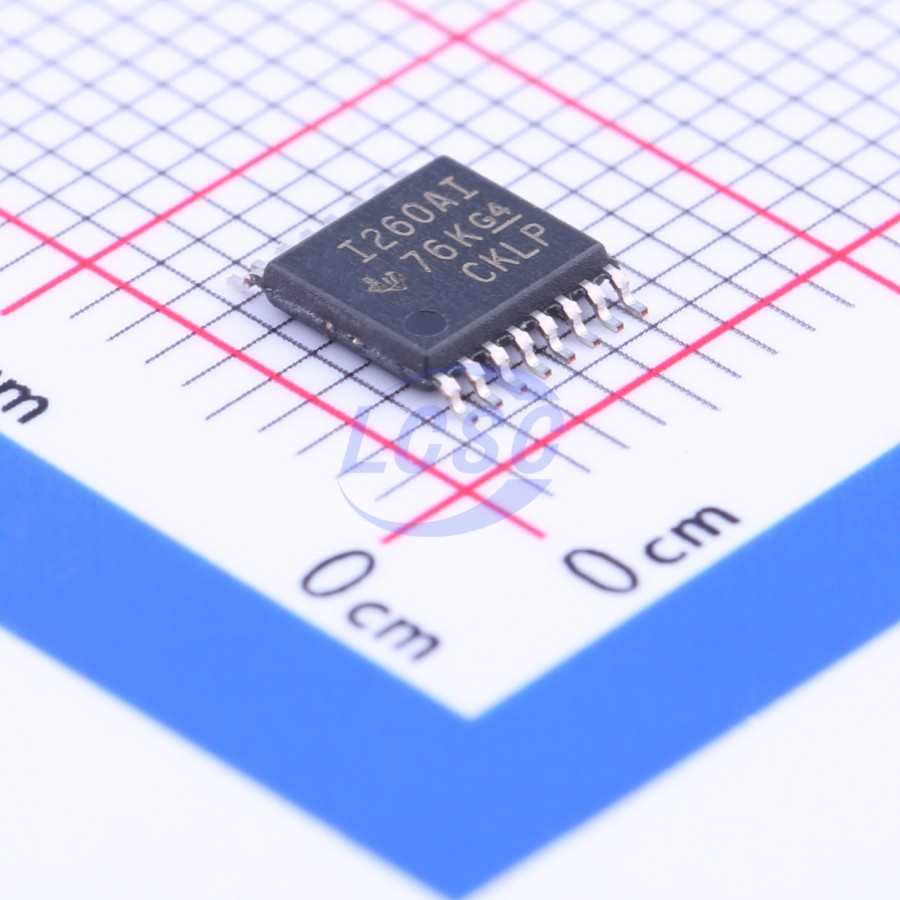

INA260AIPW

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: INA260AIPW
• LCSC: C181331
• Category: current-monitor
• Description: Precision digital current and power monitor with low-drift integrated shunt, Vcm 0V36V, 17nA Ib, 1.25mV Vos, -40°C+125°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

• Package / footprint name: TSSOP-16
• Pin count: 16
• EasyEDA symbol UUID: 5079201fc1784930a642dee52fcba9da
• EasyEDA footprint UUID: a11950ceac50438289ff689a35fd9574
• EasyEDA device UUID: 858a7f405e314a4ebc53533cc0c2aa1a
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common power distribution, protection, and sensing seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/ina260
• Product URL: https://www.ti.com/cn/lit/gpn/ina260
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: I2C bus-voltage, shunt-current, battery-rail, load-current, and power monitoring
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category current-monitor, interfaces i2c, package TSSOP-16, and EasyEDA footprint UUID a11950ceac50438289ff689a35fd9574.
