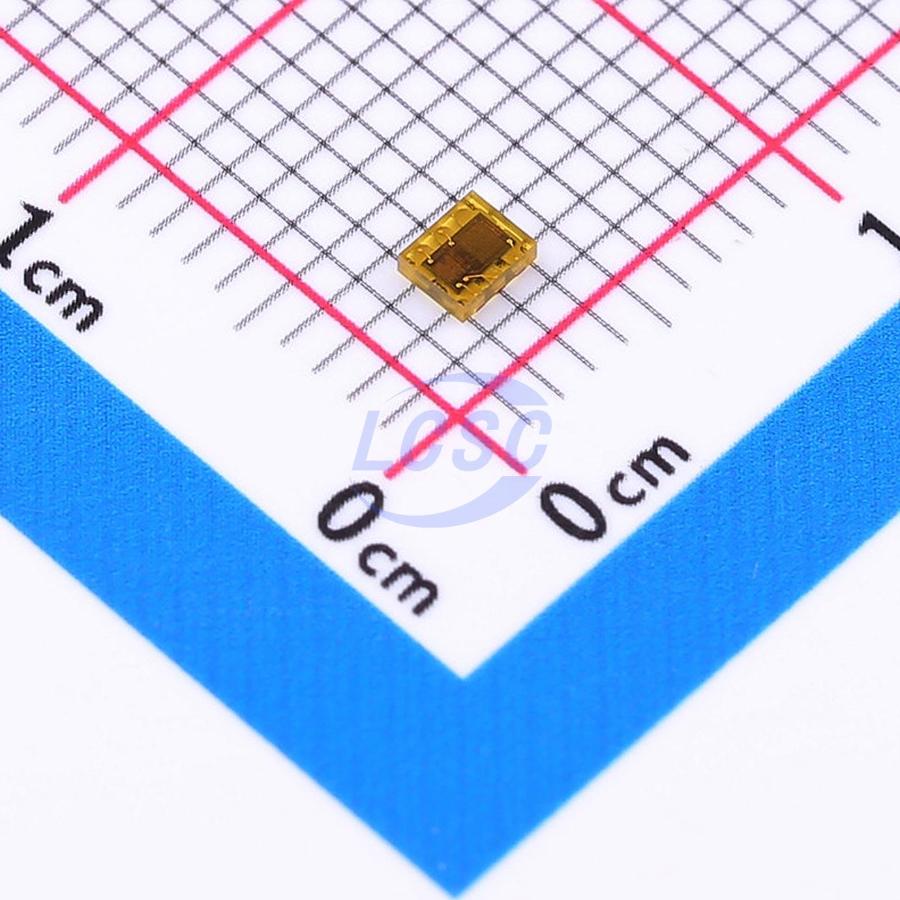

TSL25911FN

Identity

• Manufacturer: ams(艾迈斯半导体)
• Model / MPN: TSL25911FN
• LCSC: C176812
• Category: light-sensor
• Description: TSL25911FN light-to-digital converter; I2C; 2.7V3.6V; light intensity; 2.3uA; -30°C+70°C; 2.4mm x 2mm x 0.65mm
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

• Package / footprint name: DFN-6(2x2.2)
• Pin count: 6
• EasyEDA symbol UUID: d0dca9f88e974c2e83a6519360b916a7
• EasyEDA footprint UUID: c1b580ec0b1f49a6bc514acbec1cb19c
• EasyEDA device UUID: df5940b807f44114ac416c75bb3bbe95
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 2.7V~3.6V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common IoT sensors, storage, and communications seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/TSL25911FN/188203.html
• Product URL: https://item.szlcsc.com/datasheet/TSL25911FN/188203.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: telemetry and environment sensing designs
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category light-sensor, interfaces i2c, package DFN-6(2x2.2), and EasyEDA footprint UUID c1b580ec0b1f49a6bc514acbec1cb19c.
